| Cap Ref | uF | V | Lead Spacing | Location |
| C14 | 10 | 25 | 2.5 | Main board |
| C25 | 47 | 25 | 2.5 | Main board |
| C13 | 22 | 50 | 2.5 | Main board |
| C81 | 1 | 50 | 2.5 | Main board |
| C31 | 22 | 50 | 2.5 | Main board |
| C52 | 220 | 50 | 5 | Main board |
| C60 | 2200 | 16 | 5 | Main board |
| C49 | 2200 | 10 | 5 | Main board |
| C44 | 2200 | 10 | 5 | Main board |
| C48 | 2200 | 10 | 5 | Main board |
| C53 | 120 | 16 | 2.5 | Main board |
| C32 | 2.2 | 50 | 2.5 | Main board |
| C69 | 47 | 25 | 2.5 | Vertical sub-board |
| C67 | 1 | 50 | 2.5 | Vertical sub-board |
| C36 | 1 | 50 | 2.5 | Vertical sub-board |
| C40 | 4.7 | 25 | 2.5 | Vertical sub-board |
Resource icon

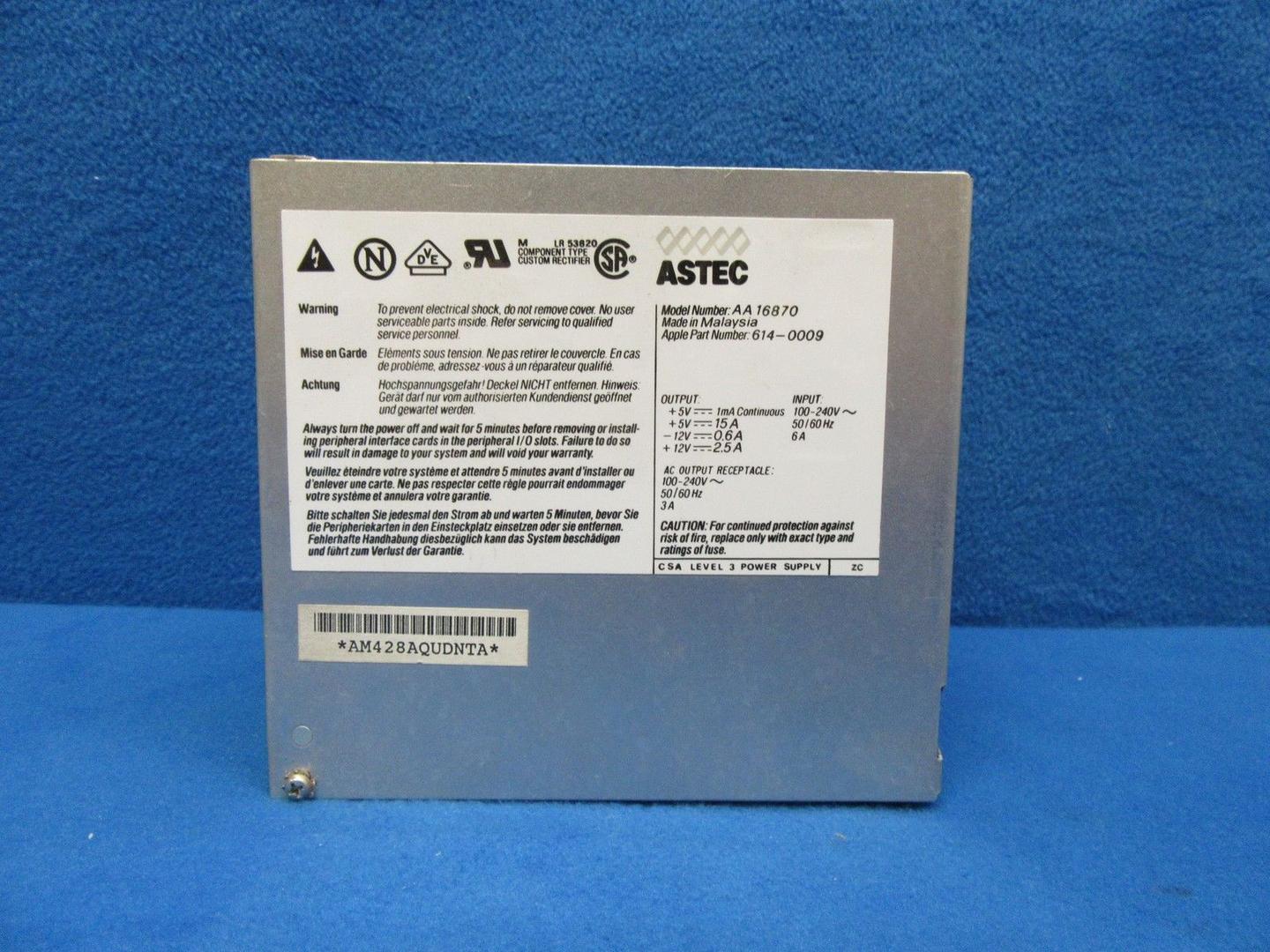

ASTEC AA16870 Recapping Guide
