Does anyone have this VidCard available for a photo session?

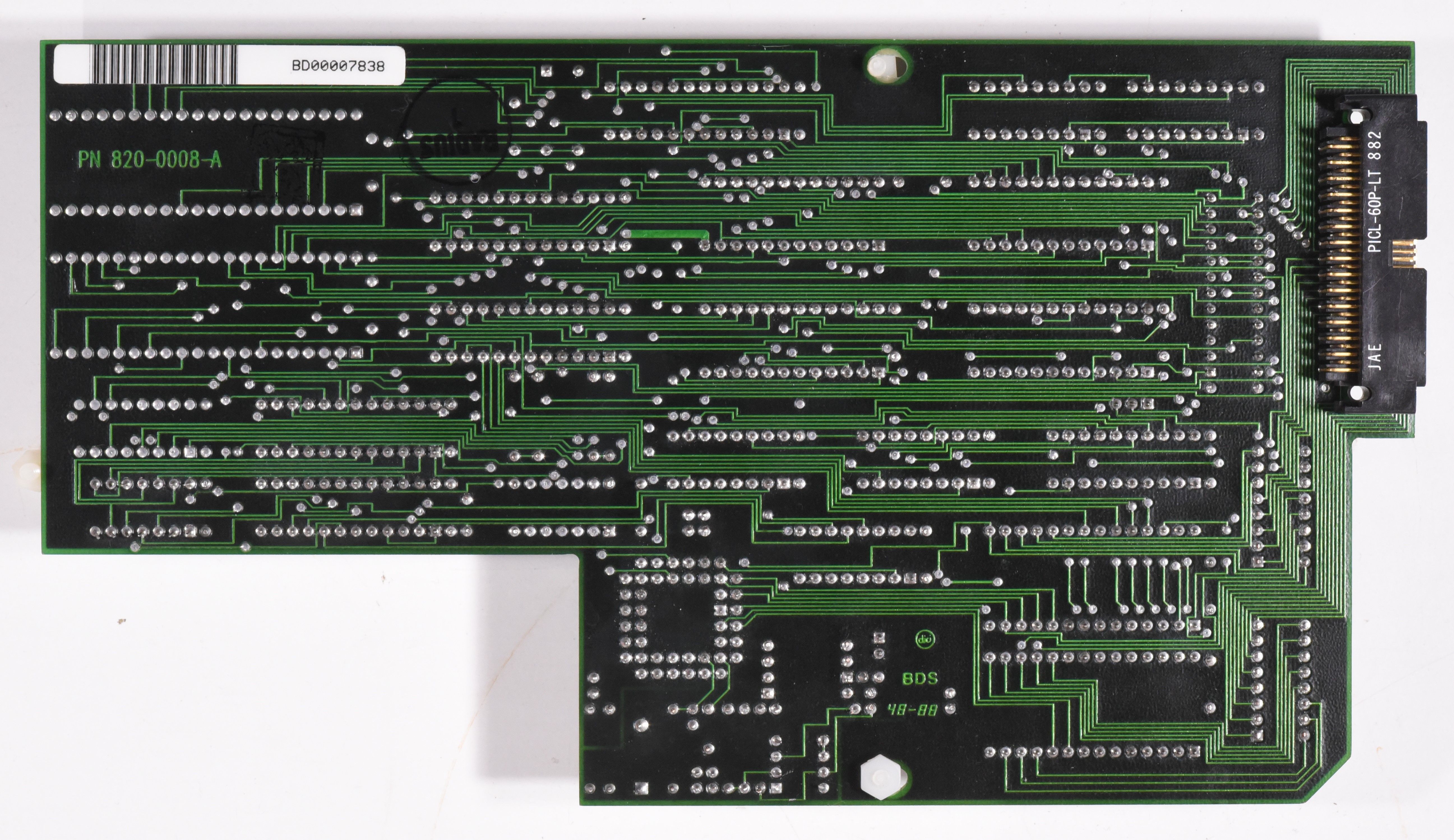

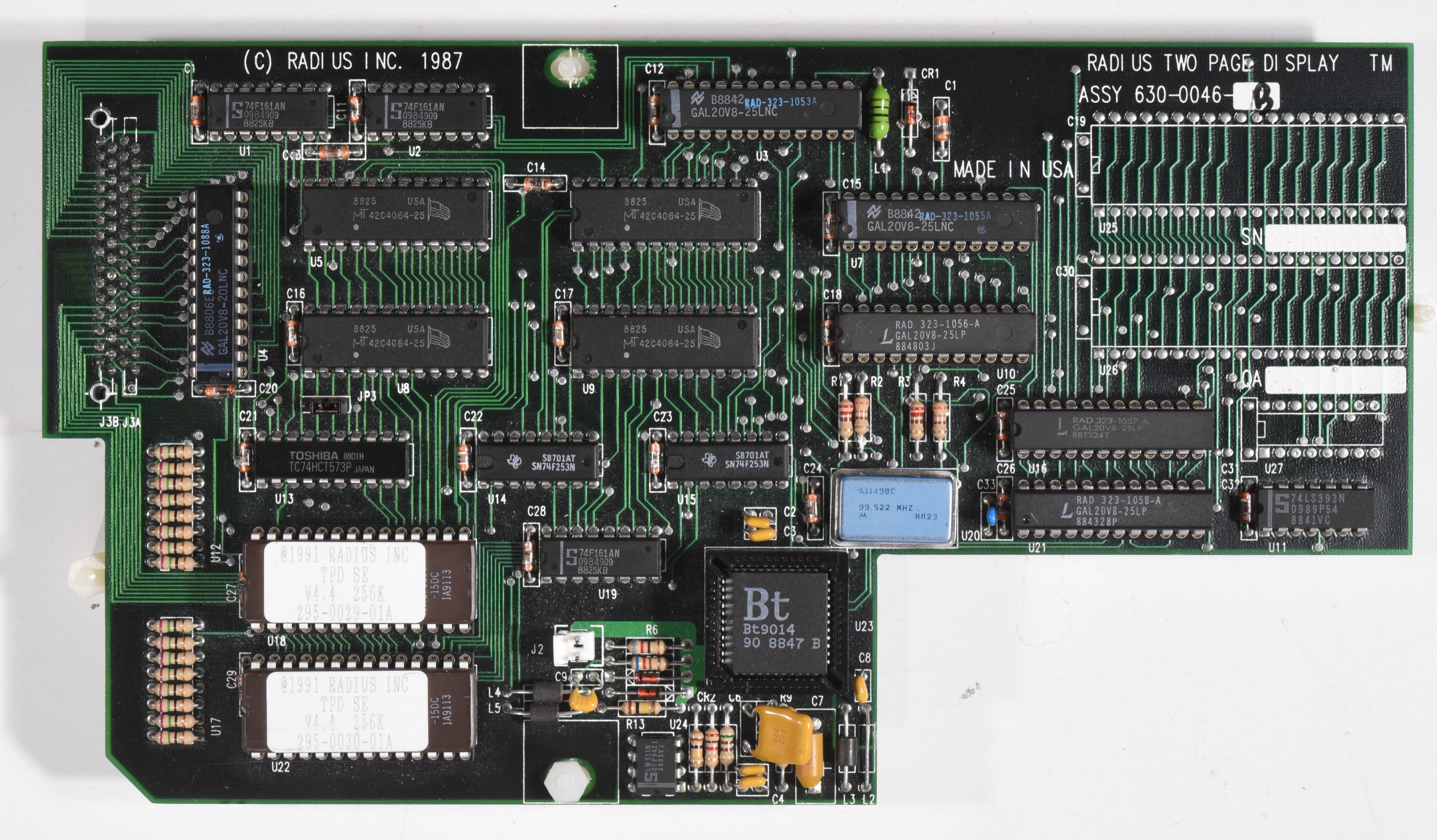

It's Radius' first product and one of the very few Radius cards I've yet to collect. Got TPD card for SE in hand and the BT9014 on it appears to be the only problematic Programmable Logic on the board?

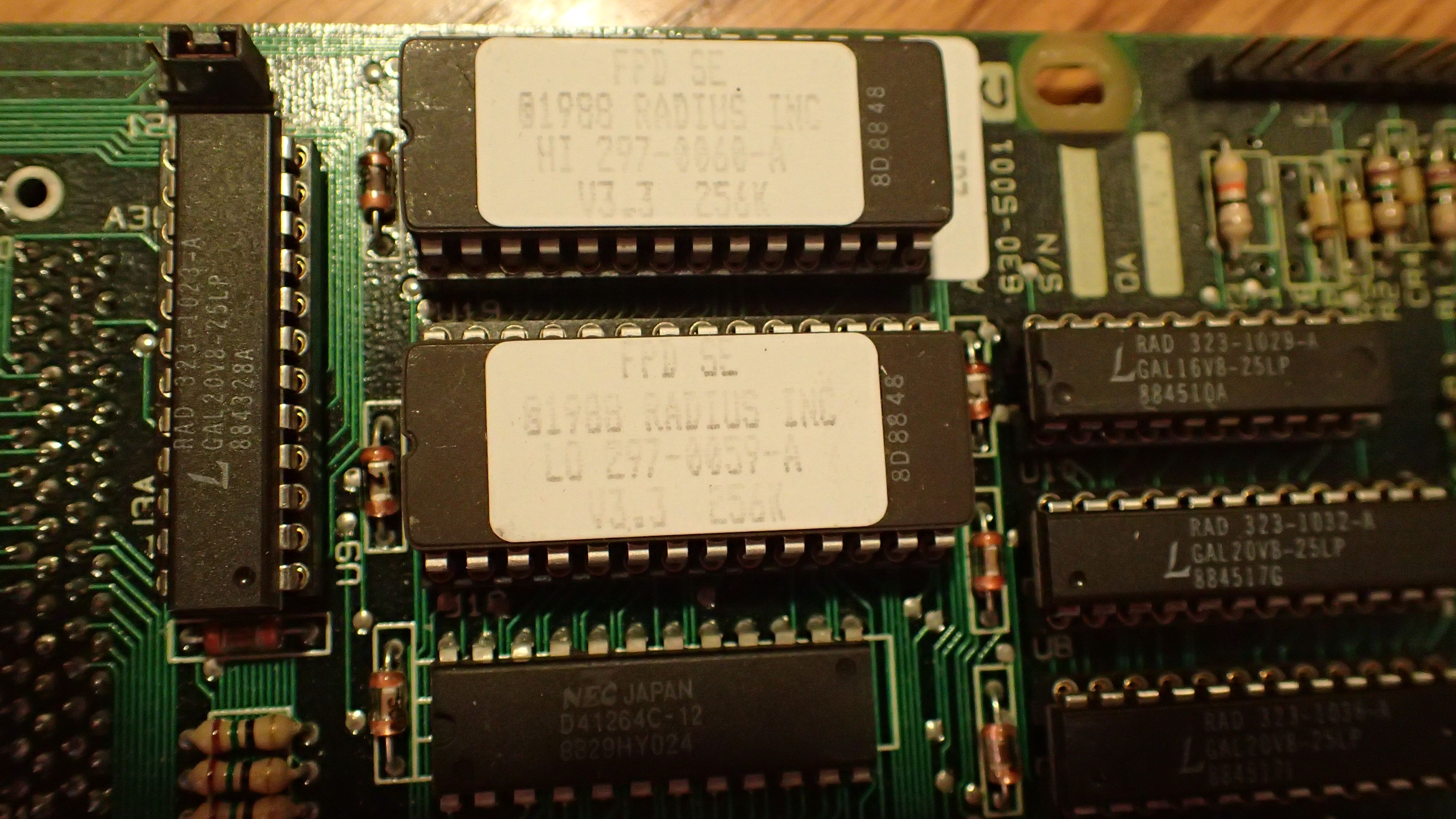

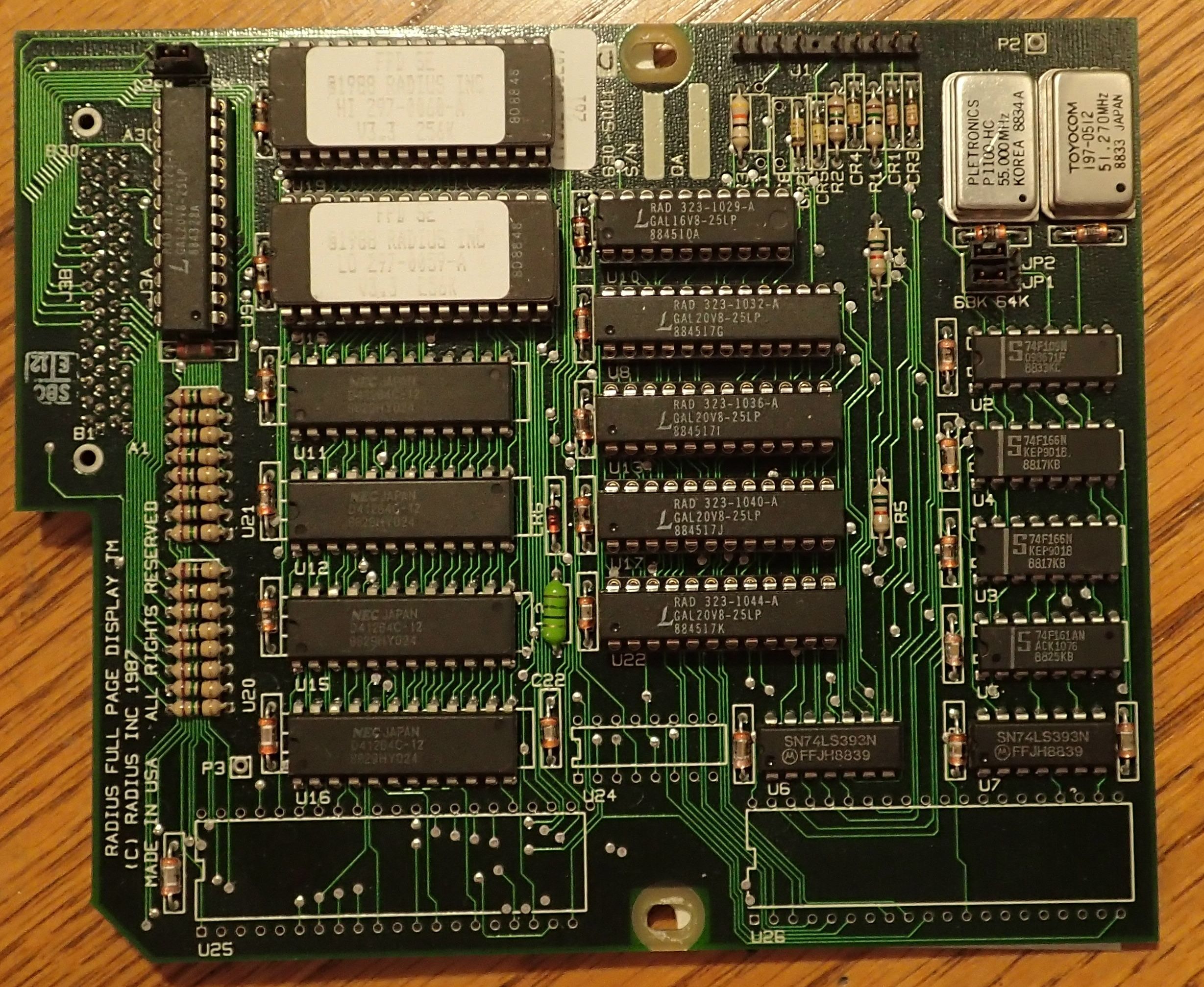

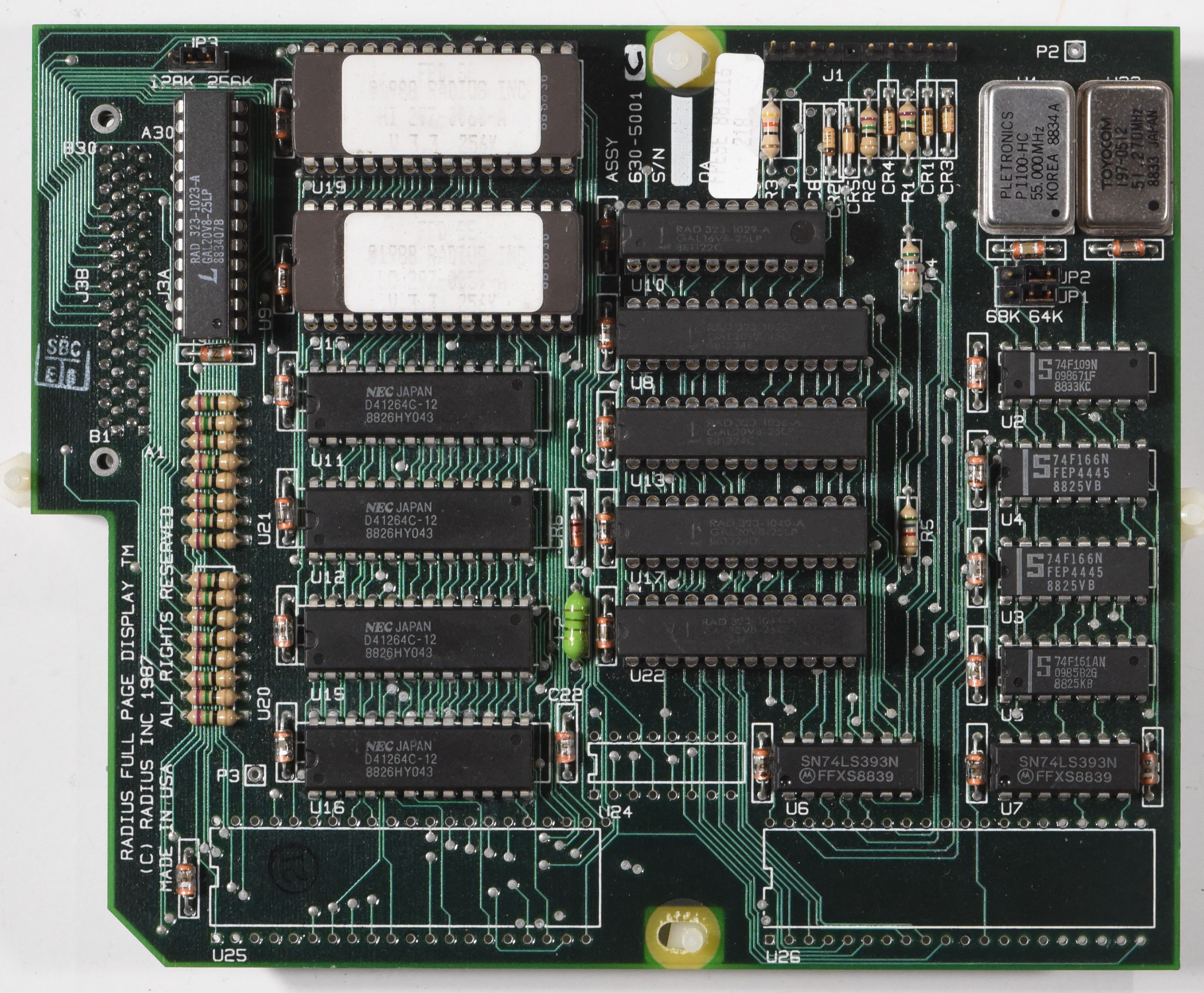

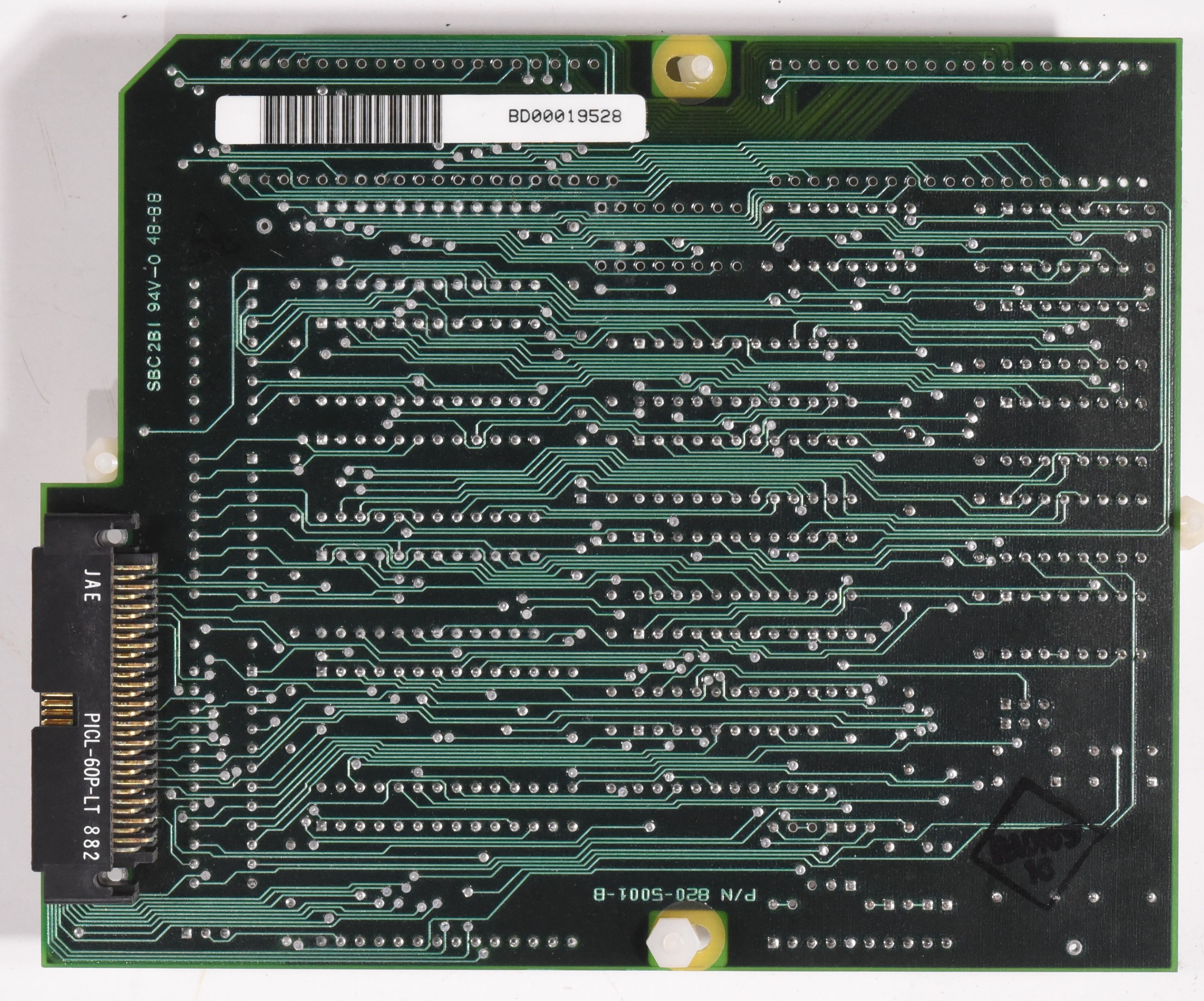

NuBus Mafia appears to be down over on 'fritter, but I found this pic:
Given today's progress, that looks eminently doable?
@max1zzz of course your ITXPlus would be the target.
Crazy AM wakeup mode has me thinking in terms of a later version of your masterpiece that puts the 68000 on a riser card in the equivalent of the ITX PCIe slot spec. Passthru for horizontally mounted expansion cards a la IIsi provided of course. PCI connector is perfect for MoBo and Riser.
Caffeine has kicked in some rational thinking, A Killy Klip version of the FPD should work as is for your board and standard Plus board?
It's Radius' first product and one of the very few Radius cards I've yet to collect. Got TPD card for SE in hand and the BT9014 on it appears to be the only problematic Programmable Logic on the board?
NuBus Mafia appears to be down over on 'fritter, but I found this pic:
Given today's progress, that looks eminently doable?
@max1zzz of course your ITXPlus would be the target.
Crazy AM wakeup mode has me thinking in terms of a later version of your masterpiece that puts the 68000 on a riser card in the equivalent of the ITX PCIe slot spec. Passthru for horizontally mounted expansion cards a la IIsi provided of course. PCI connector is perfect for MoBo and Riser.
Caffeine has kicked in some rational thinking, A Killy Klip version of the FPD should work as is for your board and standard Plus board?
