NeXT Computer / NeXTCube Capacitor Lists

[Elemenoh]

I'm in the process of recapping a couple of NeXTCubes and was a little surprised it's kind of hard to find good cap info. So here's an attempt. The MLB/PSU info here is based on an early serial NeXT Computer. So your milage may vary if there are other revisions of these boards. The Magneto Optical drive cap info is based on a thread from NeXTComputers.org.

Note the MO drive cap sizes are very small through-hole caps. Be careful when ordering. I had to source from both DigiKey and Mouser to get the right sizes.

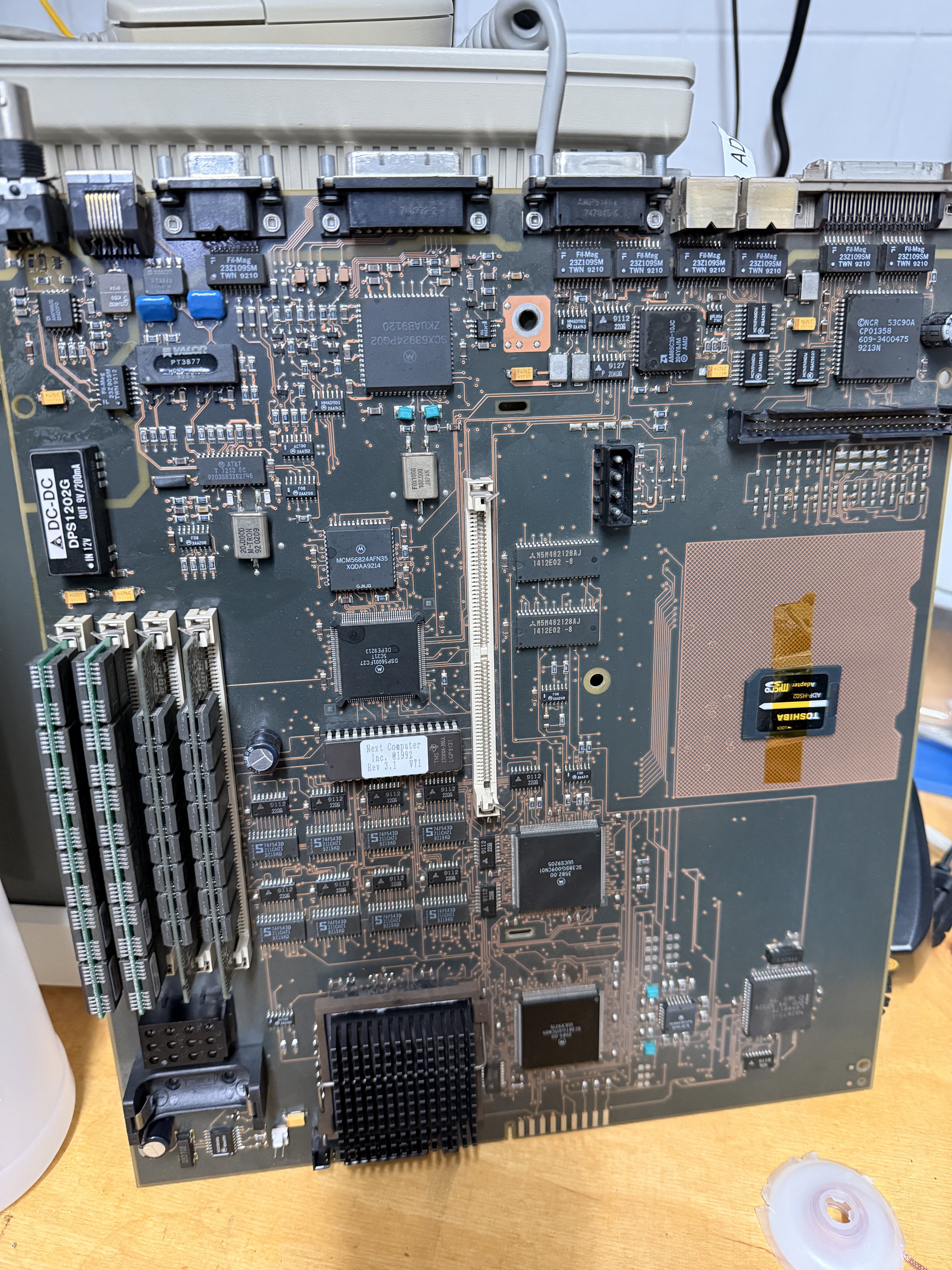

Main Logic Board​

Quantity	Type	Capacitance (uF)	Voltage Rating	Size	Lead Spacing (est.)
6	SMD	47	16	C	N/A
4	Through Hole	220	25	10x12	5

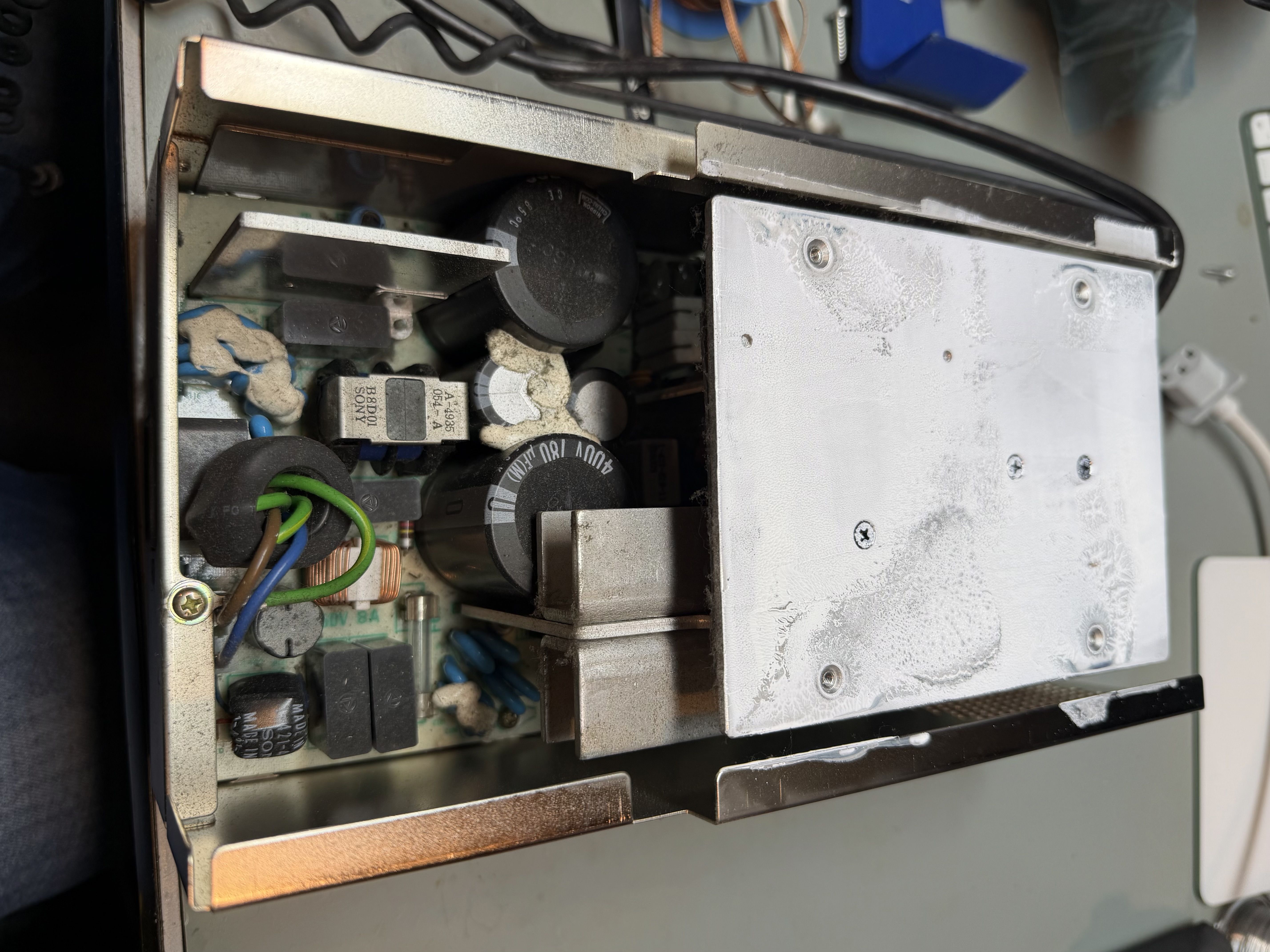

Power Supply​

Quantity	Location(s)	Type	Capacitance	Voltage Rating	Size (mm D x H)	Lead Spacing (est.)
2	C122, C123	Through Hole	780	400	40x52	10mm LI type 2 — 1.2x6 mm
2	C124, C125	Through Hole	10	250	22x40	11
1	C209	Through Hole	8,200	16	18x40	8
1	C210	Through Hole	2,200	16	16x20	8
1	C211	Through Hole	3,900	16	16x30	8
1	C212	Through Hole	1,500	16	12.5x24	5
2	C213, C214	Through Hole	15,000	6.3	18x40	8
1	C215	Through Hole	10,000	6.3	16x40	8
1	C216	Through Hole	220	25	8x13	5
2	C217, C223	Through Hole	100	25	6.5x13	5
2	C174, C218	Through Hole	1	100	6.5x13	5
1	C220	Through Hole	47	25	5x13	5
2	C173, C221	Through Hole	0.47	100	5x5x13	5
2	C178, C179	Through Hole	10	63	5.5x13	5

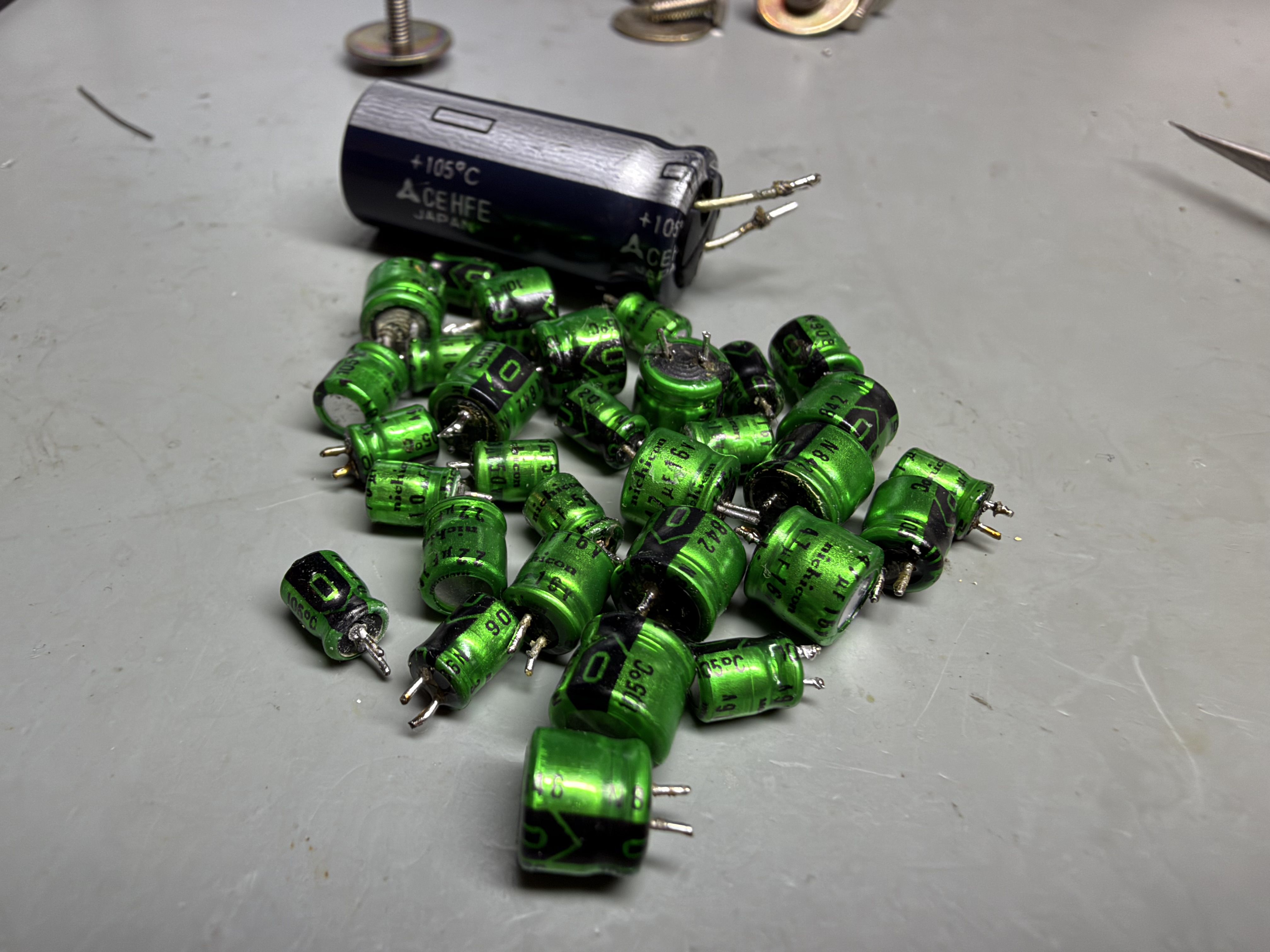

Magneto Optical (MO) Drive​

Quantity	Location(s)	Type	Capacitance	Voltage Rating	Size (mm D x H)	Lead Spacing (est.)
9	Analog C221/C266/C269 (3) Digital C421/C433/C447/C448/C477 (5) Motor C9 Rev B (1)	Through Hole	10	16	4x6	1.5
1	Hidden cap behind eject motor	Through Hole	10	25	4x6	1.5
5	Motor C4/C5/C6/C7/C8 — 50V covers both Rev A and Rev B	Through Hole	10	50	5x6	2
5	Analog C281/C244 (2) Motor C2 Rev B (1) OR Motor C1/C2/C30 Rev A (3)	Through Hole	1	50	4x6	1.5
1	Motor C3	Through Hole	2.2	50	4x6	1.5
2	Analog C306/C369 — must be polarized	Through Hole	3.3	50	5x6	2
2	Motor C31/C32 — Rev A only; skip if Rev B	Through Hole	22	10	5x6	2
2	Analog C364/C365	Through Hole	22	16	5x6	2
7	Analog C277/C279/C303/C352/C353/C354/C355	Through Hole	47	16	6.3x6	2.5
1	Motor C11 — blue body, not electrolytic	Through Hole	10	16	N/A
