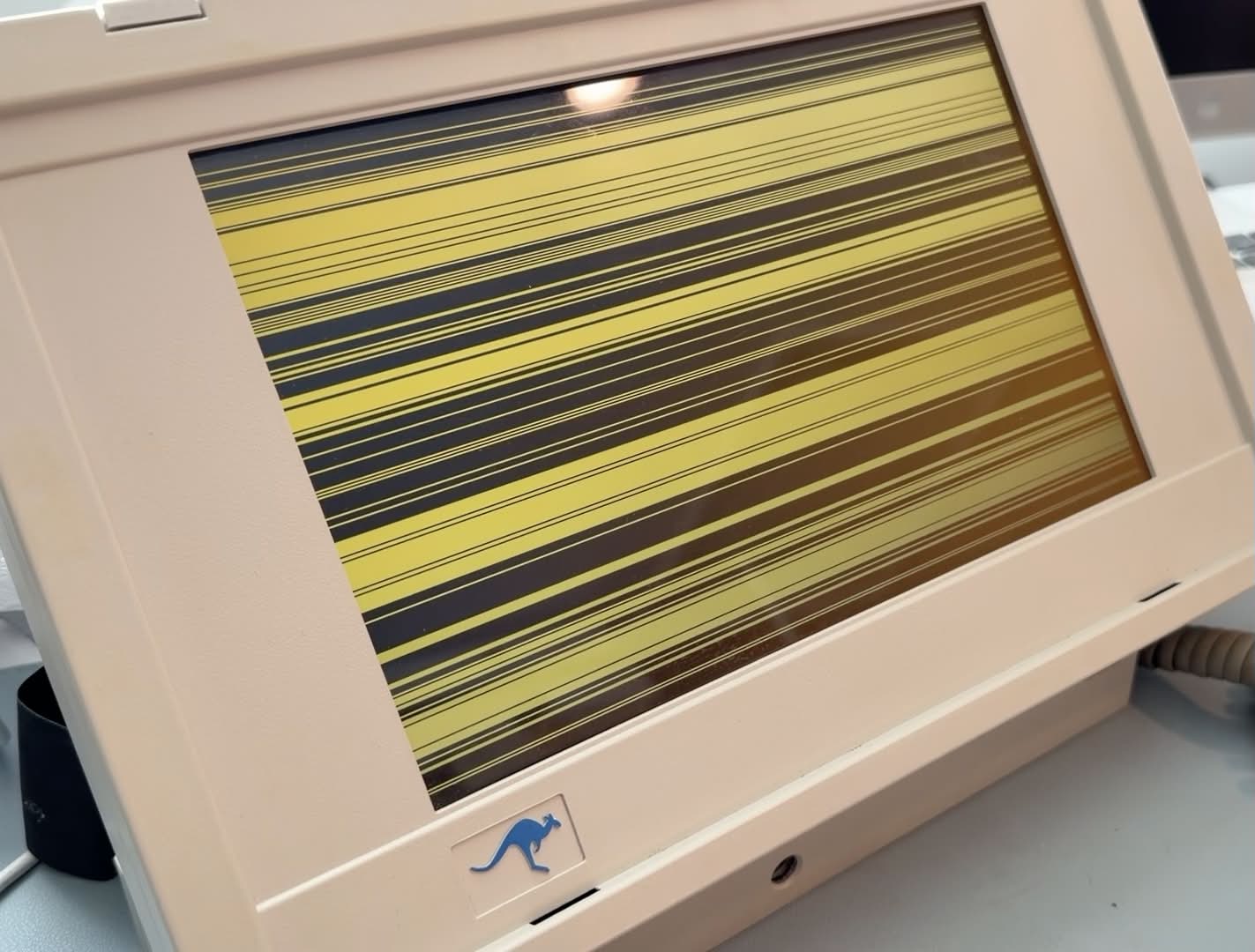

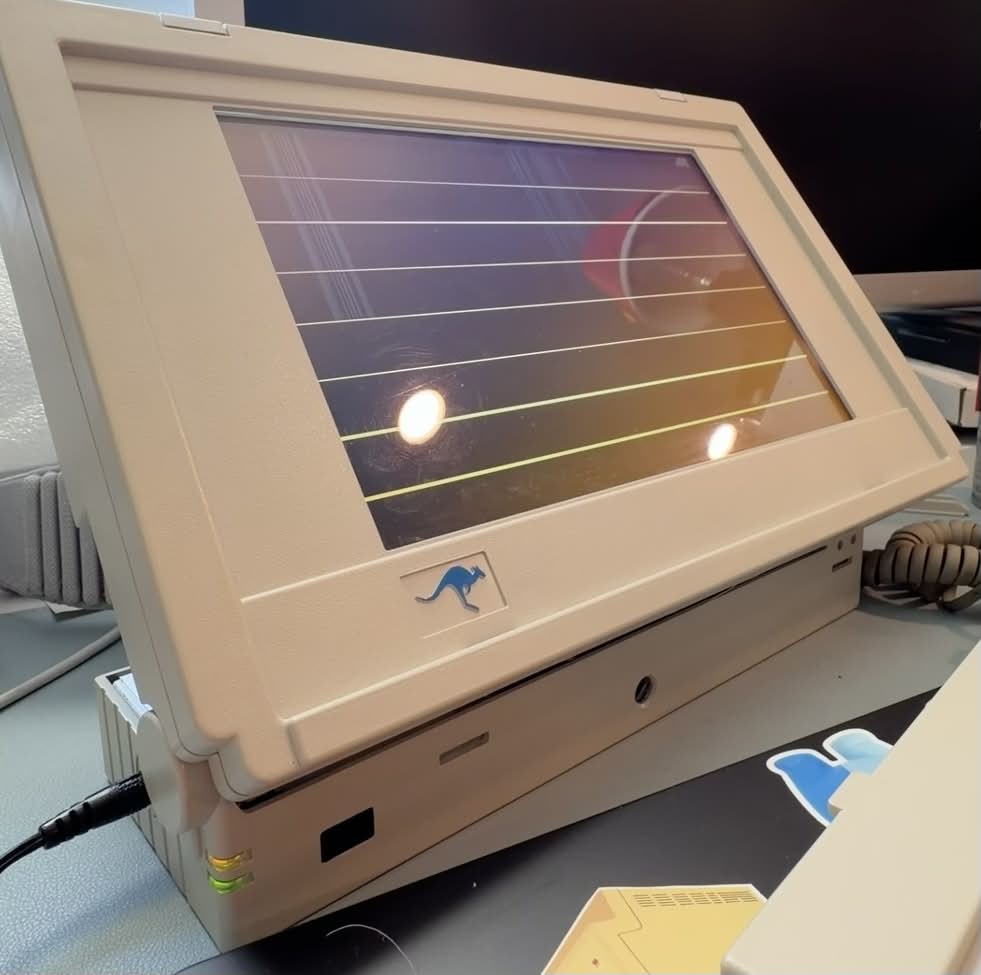

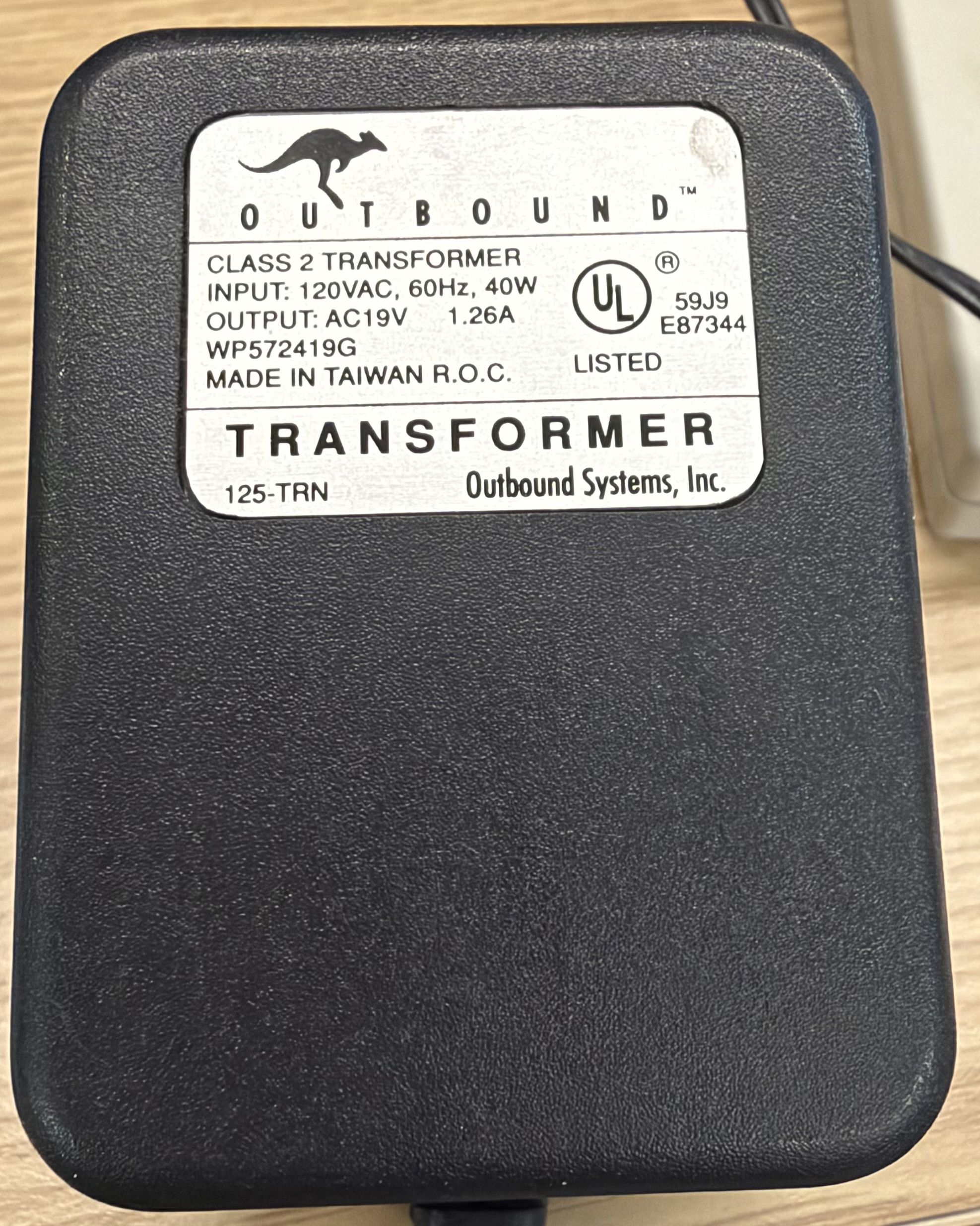

I recently got an Outbound Laptop with its original 12V AC power supply. I was able to get it to power up once, but the next day I could not get it to power up again. First stop is caps. I'll share a cap list and repair journal here. Hopefully it'll be an easy one.
There is a lot more info and helpful resources at this 68kmla post.

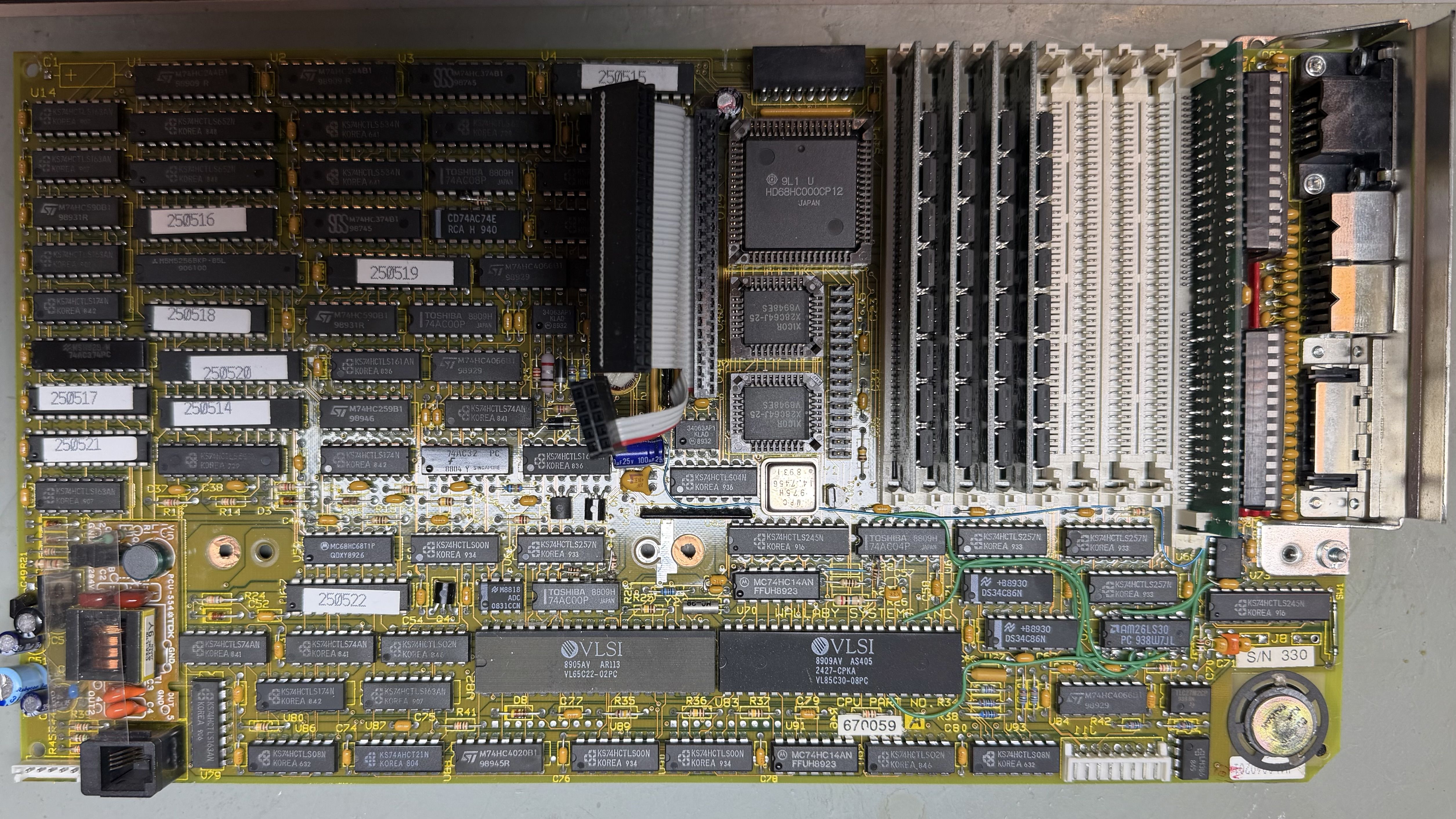

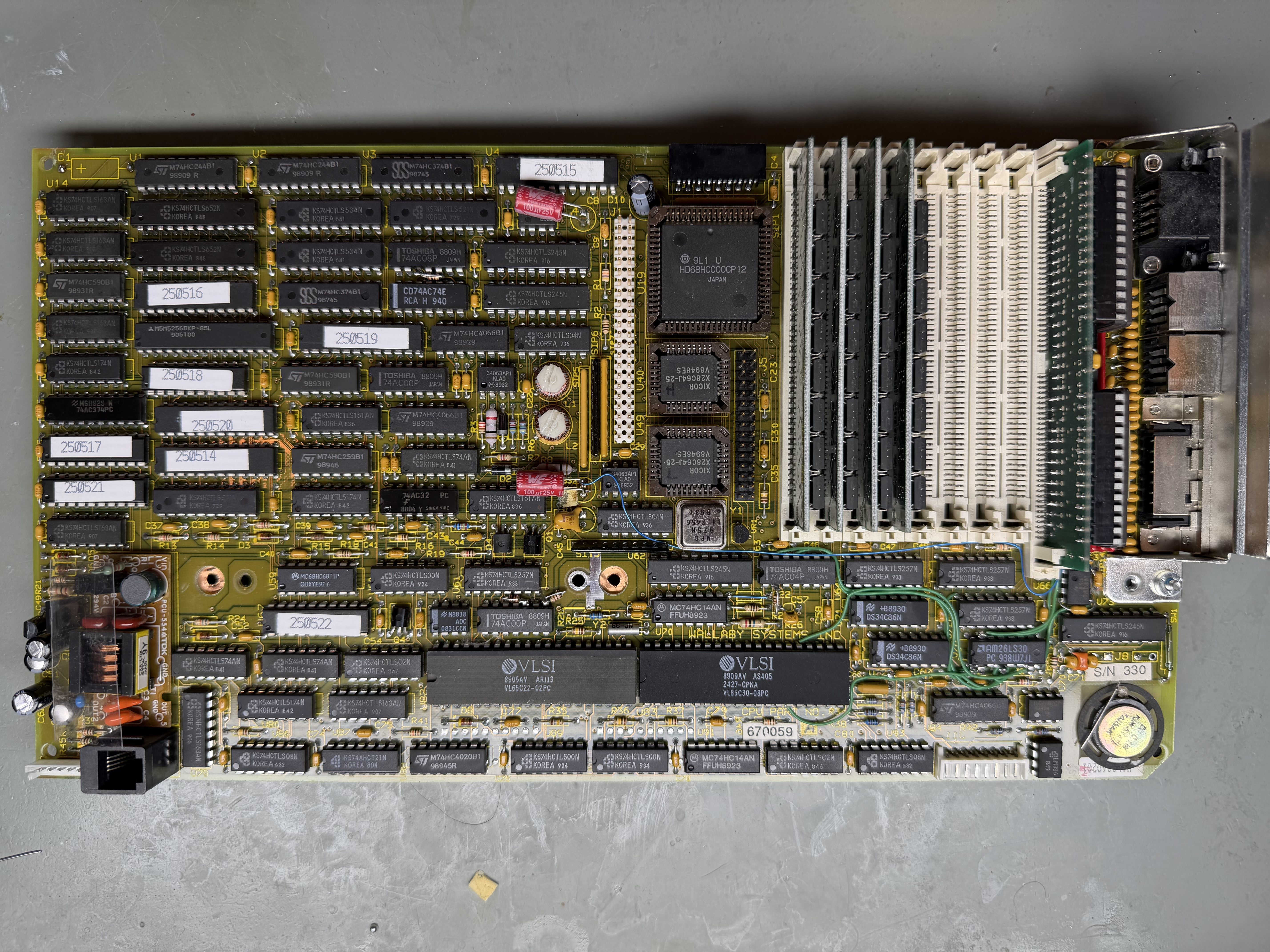

MLB Capacitor List
There is a lot more info and helpful resources at this 68kmla post.

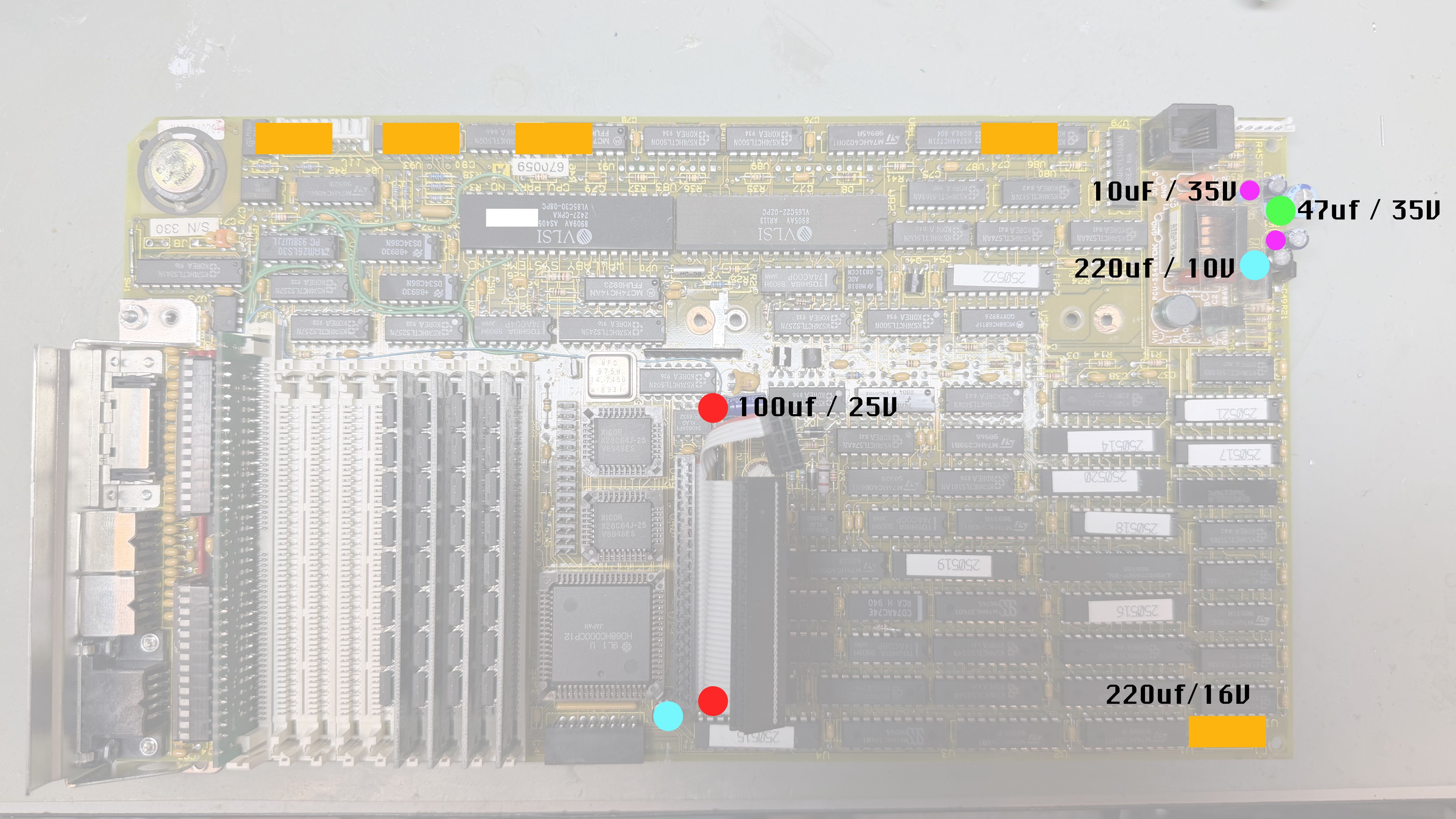

MLB Capacitor List
| Quantity | Location(s) | Type | Capacitance (uF) | Voltage Rating | Size (D ✕ H mm) | Lead Spacing (mm) |
|---|---|---|---|---|---|---|

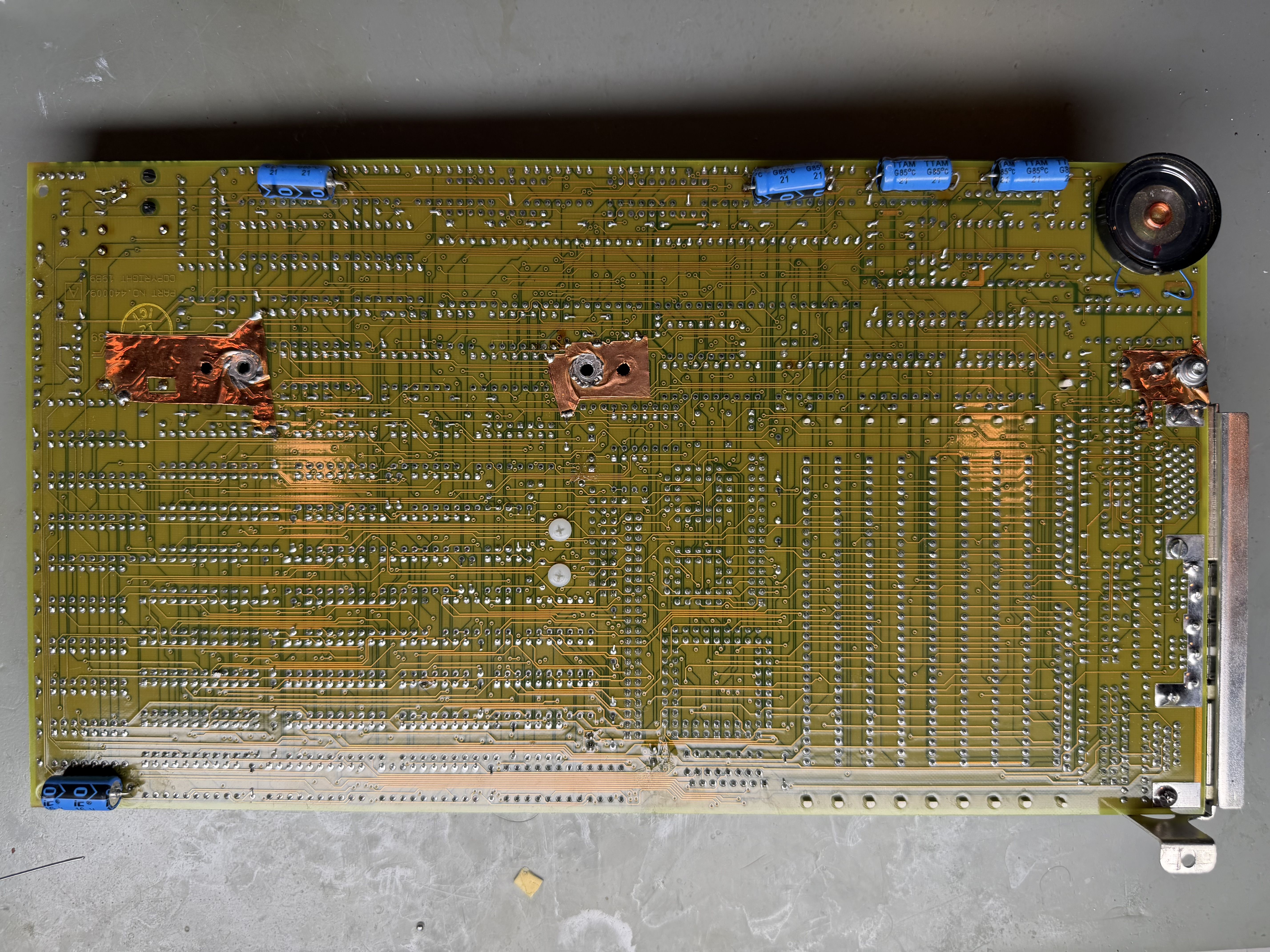

| 5 | C1 & 4 others unmarked on back side | Through Hole (Axial) | 220 | 16 | 8 ✕ 16 | N/A |
| 2 | C10, C50 | Through Hole | 220 | 10 | 6.5 ✕ 12 | 2.5 |
| 2 | C8, C33 (C33 Positive is bodged to a nearby cap pack) | Through Hole | 100 | 25 | 6.5 ✕ 12 | 2.5 |
| 2 | C51, C63 | Through Hole | 10 | 35 | 5 ✕ 11 | 2.5 |
| 1 | C62 | Through Hole | 47 | 35 | 8 ✕ 12 | 3.5 |
