Radius Color Pivot Capacitor List

[Elemenoh]

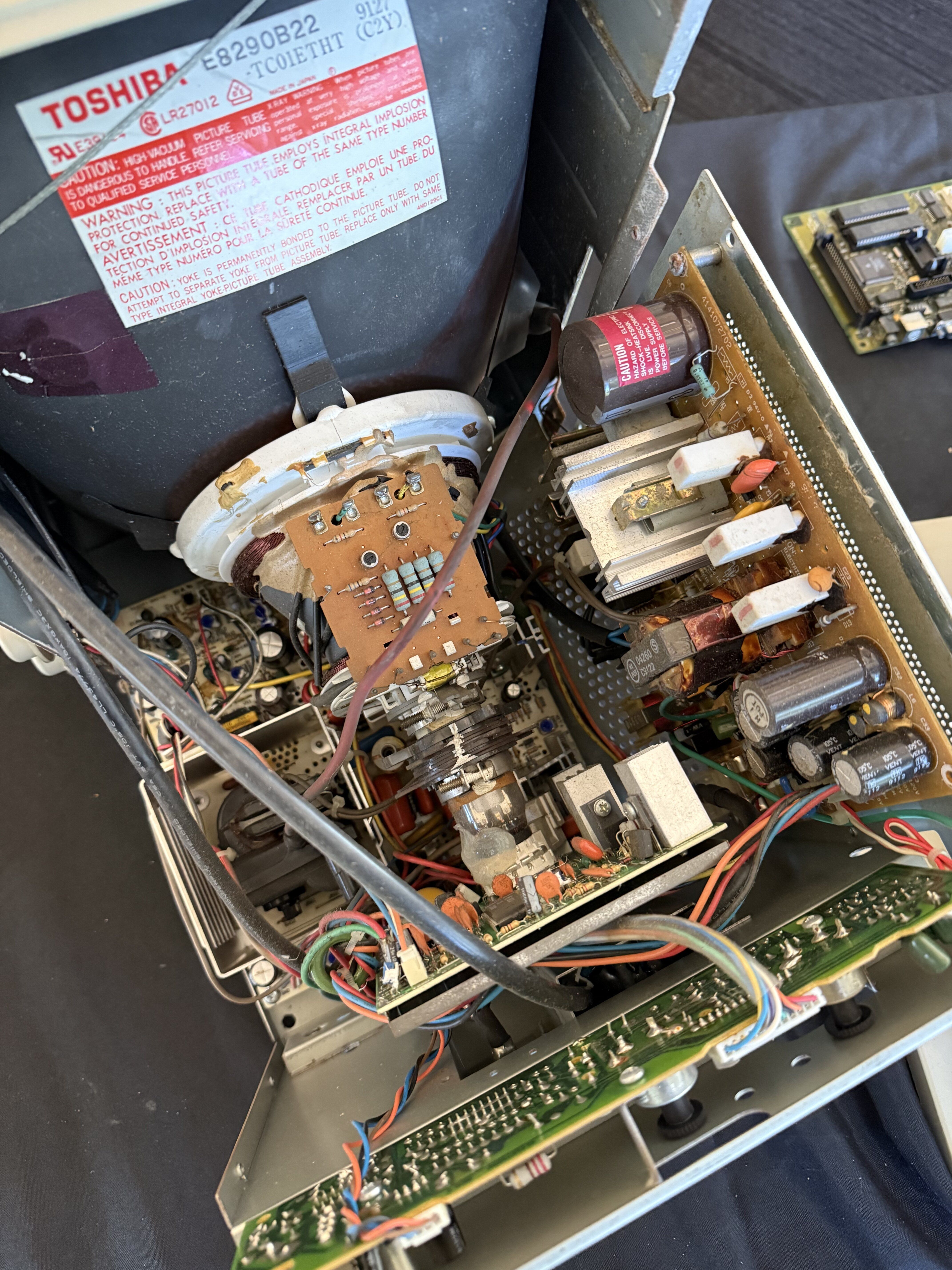

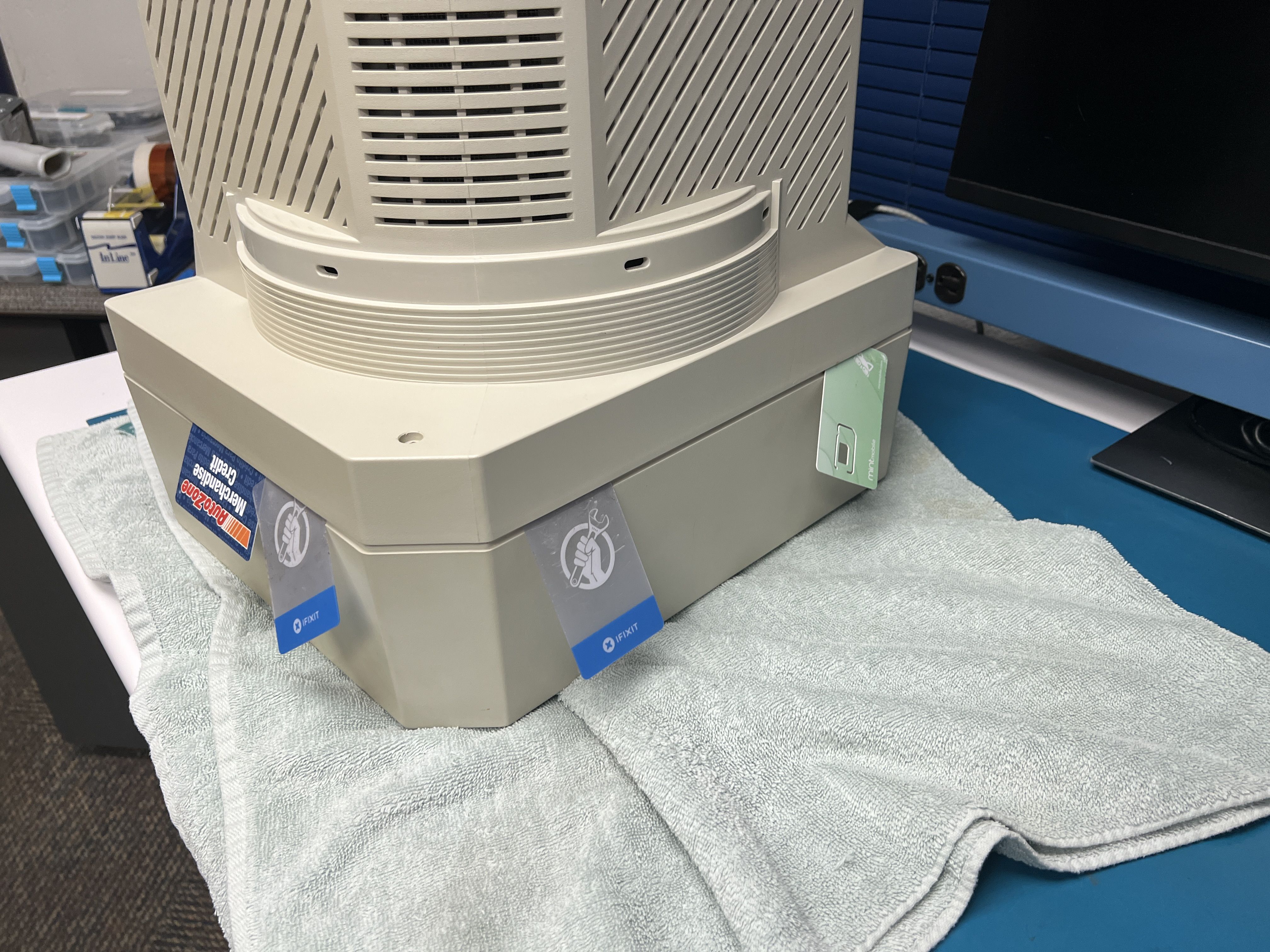

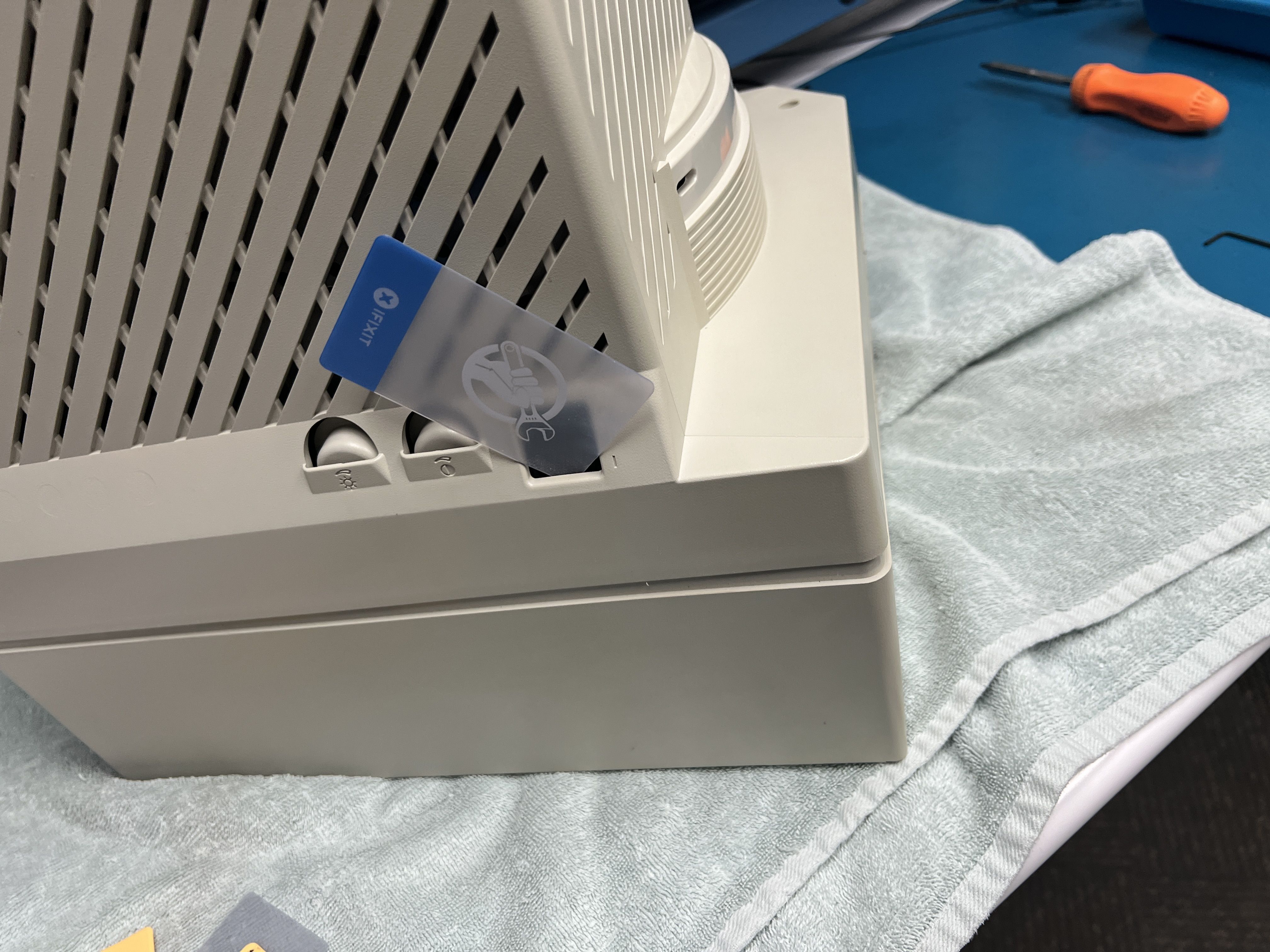

I recently took apart a Radius Color Pivot to recap it. It was surprisingly difficult to get apart and had quite a few caps. If you take one of these apart, I recommend taking a bunch of photos, marking where screws go on each panel, which things got unplugged, and the order in which you removed each panel. There's probably a 'right' way to take things apart, but it wasn't obvious to me.

Good luck and happy pivoting!

Power Supply​

Cap Location	Capacitance (uF)	Voltage Rating (V)
C11	22	25
C17	220	25
C28	470	25
C29	220	25
C30	100	160
C31	47	160
C32	150	200
C33	47	160
C36	470	50
C37	1000	50
C60	330	400
C70	2.2	50
C73	1	50
C74	10	25
C77	47	25

Main Deflection Board​

Cap Location	Capacitance (uF)	Voltage Rating (V)
C302	220	50
C303	100	50
C307	1	50
C311	100	50
C313	1000	35
C314	10	50
C316	10	50
C320	100	50
C328	1000	50
C335	220	50
C405	1	50
C407	1	50
C409	470	25
C414	4.7	50
C415	220	50
C419	100	200
C501	100	100
C502	22	250

Neck Board​

Cap Location	Capacitance (uF)	Voltage Rating (V)
C202	100	25
C204	10	25
C208	10	25
C209	10	25
C214	10	25
C215	10	25
C222	100	100
C225	22	100



[PL212]

I think some folks at VCFWest were doing the same!



[Elemenoh]

I think some folks at VCFWest were doing the same!

That was me and my friend



[JDW]

@Elemenoh
Have any photos or videos of your recapped Pivot in action?

In terms of major jobs like this, I'd advise getting a tripod and keep your camera (or even iPhone) handy. That's really how I got started on YouTube in terms of my Public videos. You see, I'm forgetful and I wanted to make a video to remind myself of what I did, just in case I needed to do it all over. In particular, I wanted to try baking my 2009 iMac's video card back to life, so I started the camera rolling, initially doing it for myself. But then I started talking on the video as if I was speaking to other people too. After reviewing the footage, I decided to make it public, and it ended up helping a lot of people. That inspired me to go on to make 8 videos on the subject, and then many more about vintage Macs in general. I think a video about "Radius Color Pivot Recapping" would truly be fantastic!
