Macintosh connector part numbers

alxlab

Active Tinkerer
Sep 23, 2021
287
312
63
www.alxlab.com

Attachments

  • PGA-288_SLZ.pdf
    28.4 KB · Views: 104

trag

Tinkerer
Oct 25, 2021
270
128
43
Bit of a frustrating one this - i'm looking for the part number of the ZIF socket used in the G3 and G4 Yikes models. I know its PGA-288 but they seem to just not exist! The one i have is an AMP branded one - i just snapped the heatsink mount off it 🤦‍♂️
alxlab already answered, but I'll mention that the socket is called out in section 1.8.5 of the attached specification.

Now, can we find a pin header for the 288 pin PGA socket? There's folks who would probably make one for us, but I bet they'd want a huge quantity.

The header is going to be weird. Not pin to pin in a matrix, like a normal header. But pin to balls on some sort of surface mount BGA surface or pins with flat heads that get soldered to a BGA array.

For making ZIF cards in case it wasn't clear...


Attachments

  • MPCPCMEC.pdf
    360.1 KB · Views: 167

Kai Robinson

TinkerDifferent Board President 2023
Staff member
Founder
Sep 2, 2021
1,153
1
1,162
113
42
Worthing, UK
alxlab already answered, but I'll mention that the socket is called out in section 1.8.5 of the attached specification.

Now, can we find a pin header for the 288 pin PGA socket? There's folks who would probably make one for us, but I bet they'd want a huge quantity.

The header is going to be weird. Not pin to pin in a matrix, like a normal header. But pin to balls on some sort of surface mount BGA surface or pins with flat heads that get soldered to a BGA array.

For making ZIF cards in case it wasn't clear...
An array of 288 of these: https://www.mouser.co.uk/ProductDetail/Mill-Max/1508-0-00-15-00-00-03-0?qs=X3dlXJsz9DBW7AsUsHBewg== ?

or


Last edited:

alxlab

Active Tinkerer
Sep 23, 2021
287
312
63
www.alxlab.com
According to the PDF the pin spacing on the CPU is standard 2.54mm/0.1"



so if you were so inclined you could just solder a bunch of these and make you're own socket:


https://www.aliexpress.com/item/33010354656.html

geez finally pasted the right picture... lol


trag

Tinkerer
Oct 25, 2021
270
128
43

Hmmmm. If I got a 17X17 socket, poked all the pins out, and replaced them with those DH2-?pins, that would pretty much make a ZIF header. I guess. One of these days I'm going to dissect an old 233MHz PPC750 ZIF and see what the interface between the PCB and the header looks like.


max1zzz

Moderator
Staff member
Sep 23, 2021
233
564
93
27
Anyone know the part number for the PGA-128 socket for the 68030? I may be in need of a few some day soon....

Edit: I'll add that I know peconnectors stocks them, but as they don't ship to the UK i'm looking to see if I can source them in the EU/UK


Kai Robinson

TinkerDifferent Board President 2023
Staff member
Founder
Sep 2, 2021
1,153
1
1,162
113
42
Worthing, UK
I'm happy to place an order for them as I did with the Tyco 64-pin SIMM sockets?

@torbar might be willing to be an intermediary again!


demik

Tinkerer
Oct 11, 2021
42
36
18
Any luck with that one? (I'm almost ready to send the IIcx boards to JLC and might have mangled the old socket getting it out to board....)

I just received them, but didn't use them for now. They look high quality, gold plated inside the pin sockets as well.



They may be a little on the expensive side, but getting brand new manufactured 68030 sockets is kinda nice. Even if they are out of stock, Mouser will ask Aries to build them in around 6 weeks (which they did for me)

  • Like
Reactions: Nitram78

wottle

Active Tinkerer
Oct 30, 2021
519
272
63
47
Fort Mill, SC

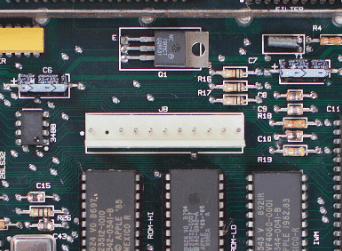

Any idea if you can get a new edge connector for the Color Classic / Performa 575 logic board? I got aboard from a non-working Color Classic only to find it was due to a broken pin, I was able to solder a little bit of metal to replace it. And the machine worked, but it looks terrible and I'm worried about the durability of that replaced pin with being plugged and unplugged as I remove and reinsert the board. I'm guessing it's proprietary and I can only get one from an existing board, but figured I'd ask.

Thanks for any help you can provide.


demik

Tinkerer
Oct 11, 2021
42
36
18
Does cables have a place in this thread ?

PCL-10120-1E from Advantech works as a floppy cable replacement. Available from Mouser, Farnell and a few others. Useful to avoid dodgy cables from eBay.
Also work for Floppy Emu


  • Like
Reactions: bakkus
