Reverse engineered iMac G3 tray-loading IO door + interposer (missing parts solution)

[zenaror]

I’ve been working on a project involving an iMac G3 tray-loading shell that I picked up incomplete (it was actually being used as a pet bed).

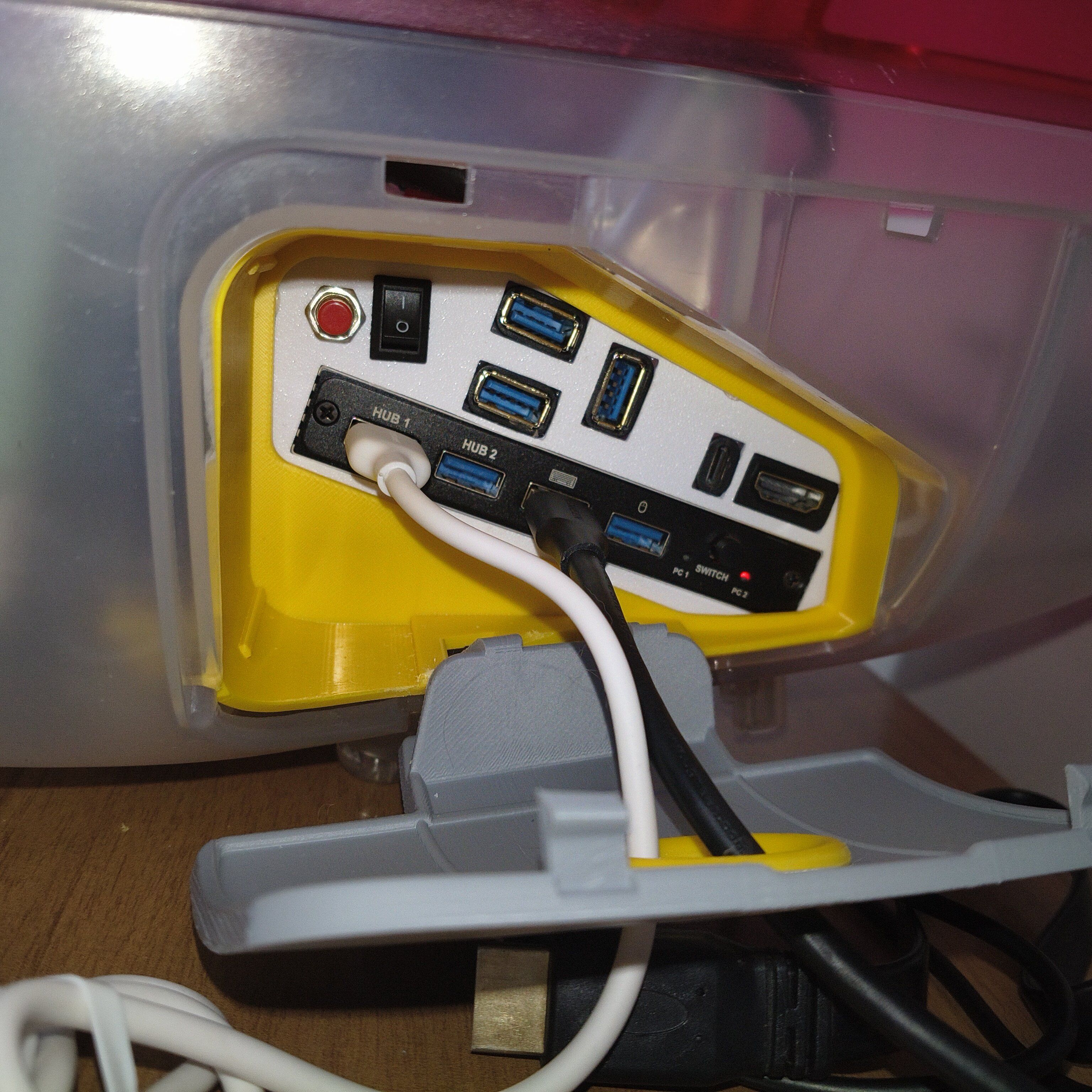

During the process, I found that two IO-related parts were missing:

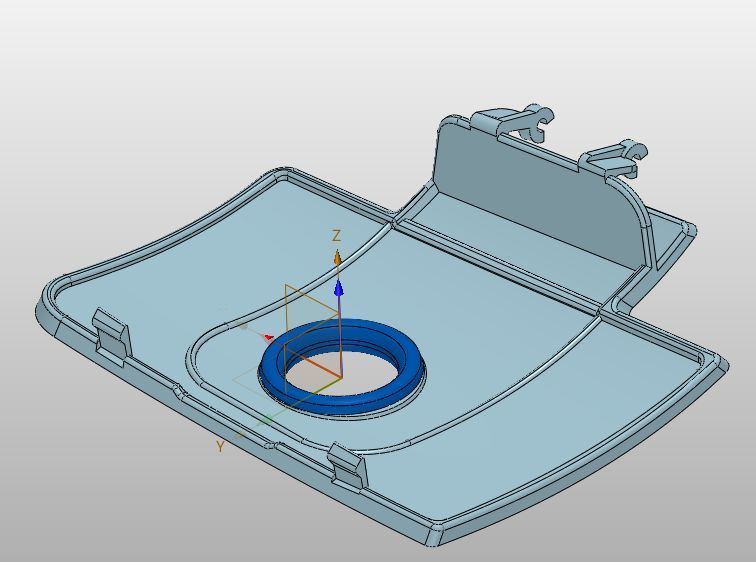

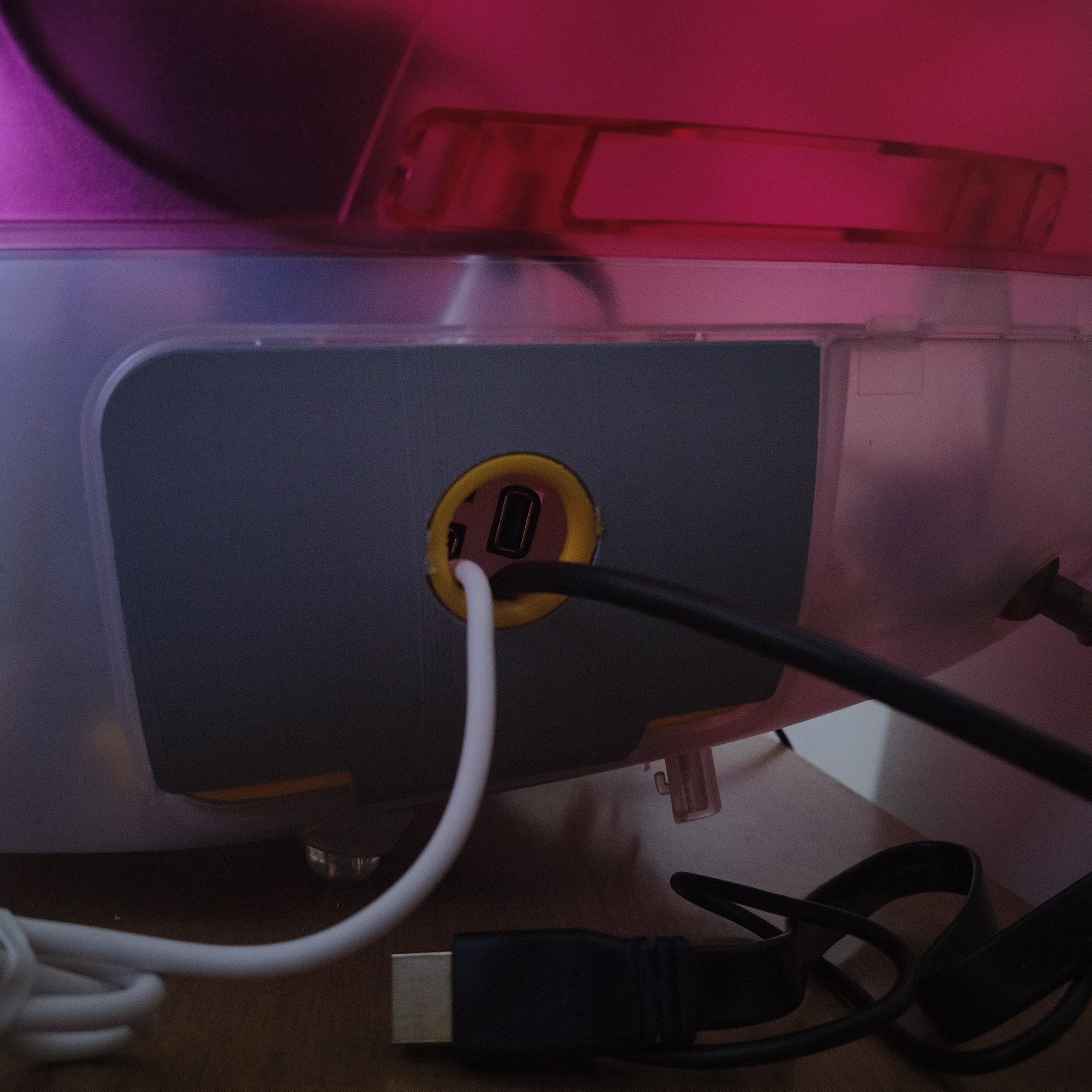

• the side IO door cover

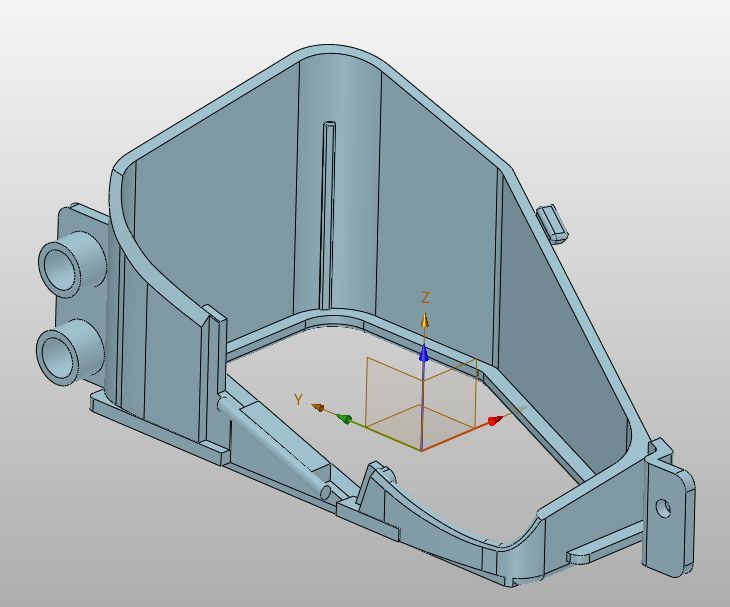

• the internal interposer bracket (the structural piece that supports the ports and door)

Since I couldn’t find replacements anywhere, I ended up recreating both parts from scratch using 3D scanning and reverse engineering.

The goal was to match original geometry and mounting points as closely as possible. After a few iterations, I was able to get proper fit and alignment with the original shell and IO layout.

A couple of notes:

• The door includes a separate ring piece, so it can be printed in different colors (to match original aesthetics)
• The interposer is structural, so stronger materials like PETG/ABS are recommended
• Both parts were tested with the original mounting system

Even though this started as part of a modding project, I believe these parts could be useful for restoration as well, especially since these tray-loading units often show up with missing or broken IO doors.

If there’s interest, I can share the STL files.
