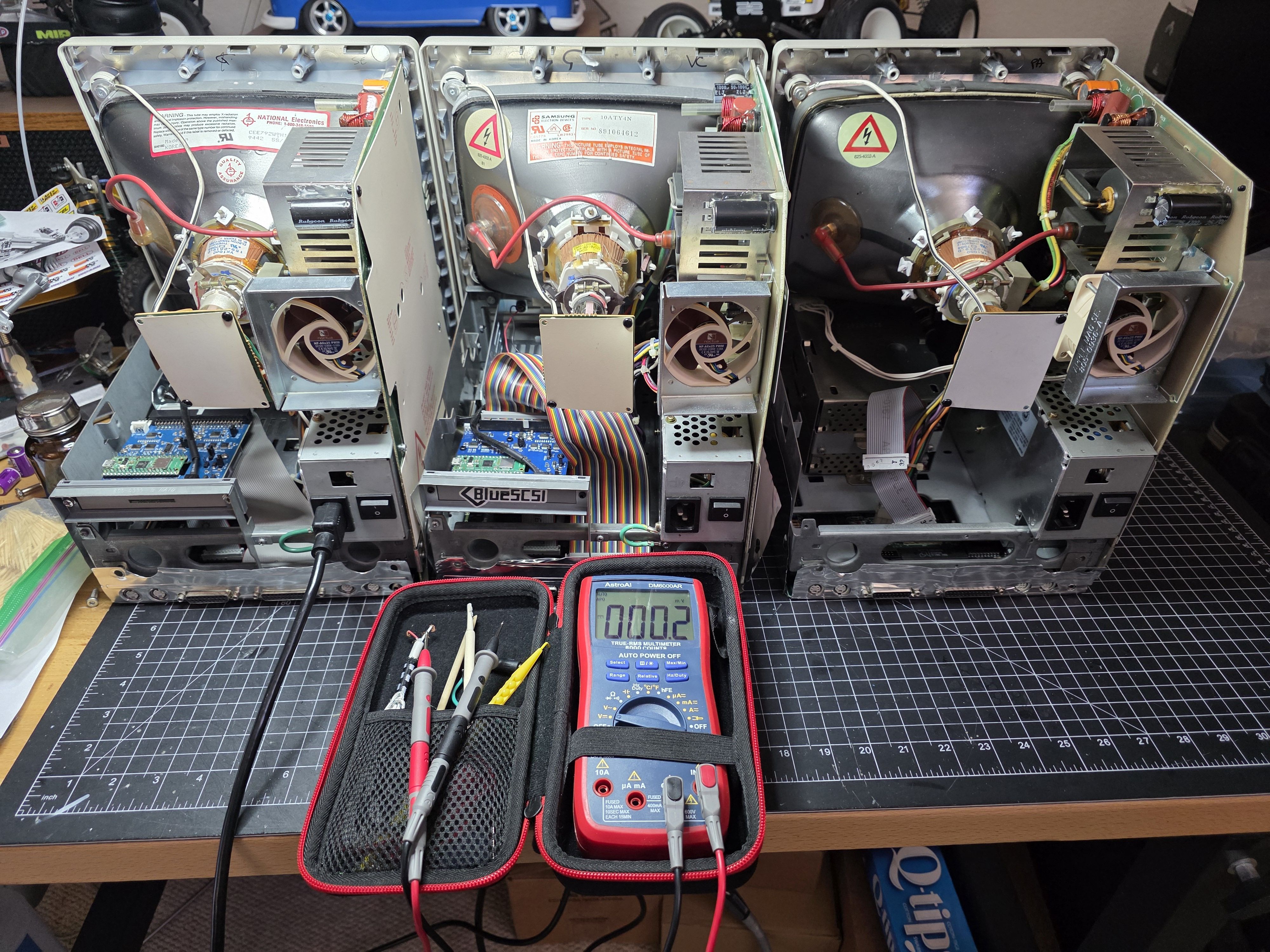

I have 1 Analog Board that came with the Mac SE @Kai Robinson very graciously sent to me in the past (from the UK), and I also have 3 other Analog Boards that I use with my SE/30 machines. All Analog Boards have been recapped, trace-repaired, and have the same Noctua 60mm fan installed. The SE has a recapped SONY PSU inside, with POT set to max by me. Motherboard is the SE Reloaded board I built myself, with 4MB RAM and WarpSE installed — working perfectly.

I tested all 4 Analog Boards inside my Mac SE (from Kai) last week. All 4 produced a perfect picture on the CRT. But the stock "SE" edition Analog board (Euro edition) shows the highest voltage at the external floppy drive connector, while the other 3 boards showed the exact same "lower" voltage.

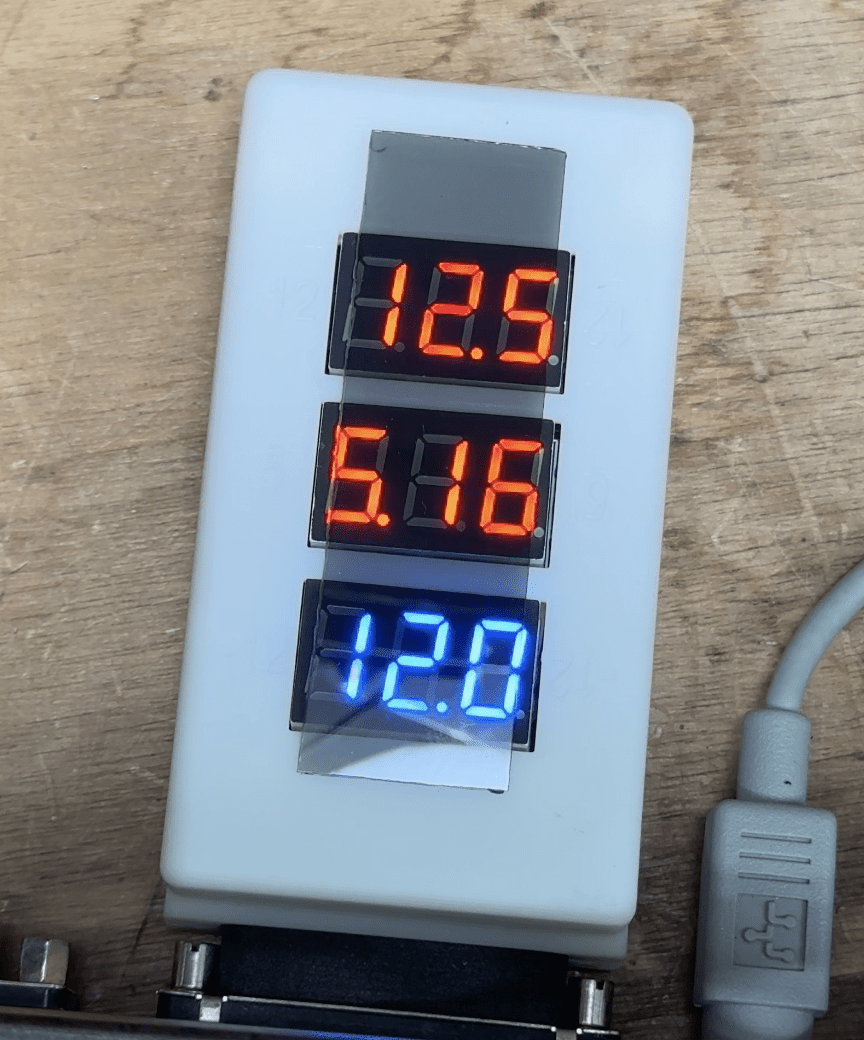

Mac SE with Euro edition SE Analog Board (5.16V)

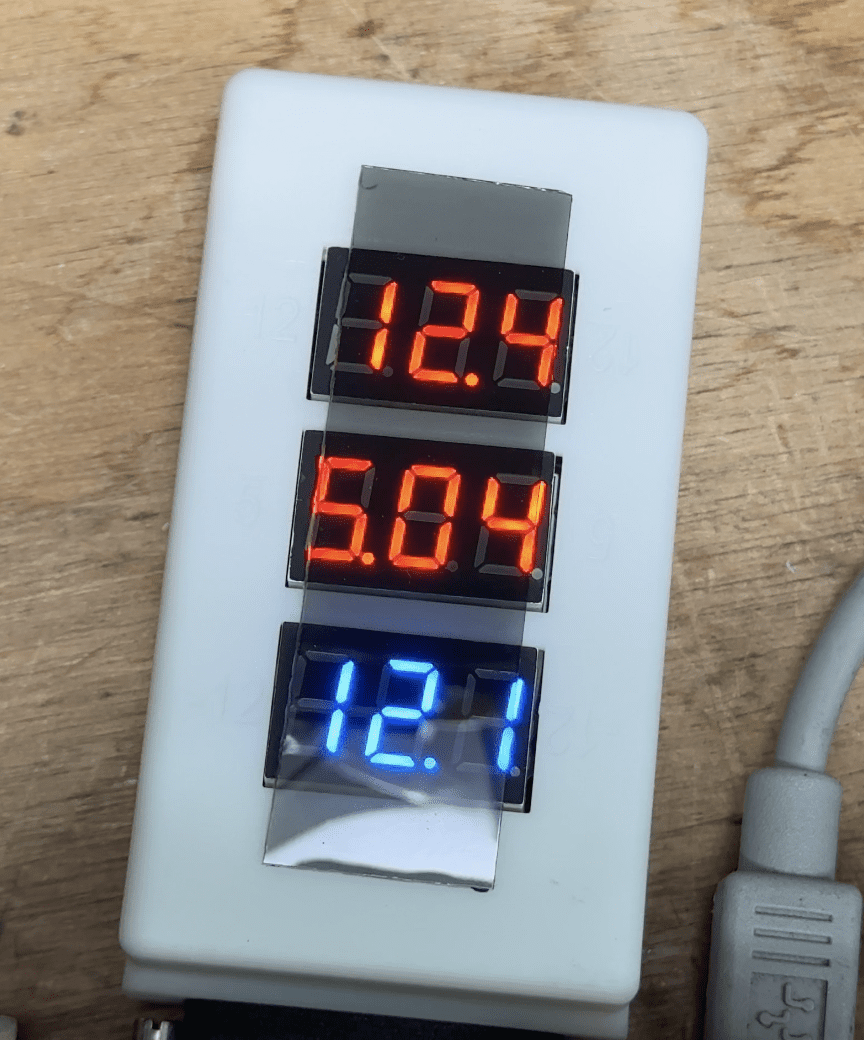

Mac SE with 3 different US edition Analog Boards (5.04V)


I am located in Japan, so AC power into the SONY PSU was 100VAC 60Hz.

Note that the main wiring harness cable connecting the Analog Board to the Motherboard was beefed up by me with 16AWG wire to ensure the smallest voltage drop.

5.16V - 5.04V = 120mV

120mV is a large difference, especially so when you consider that all three Analog Boards from my SE/30 machines showed the same exact 5.04V.
Have any of you have seen such a difference among your own Analog Boards before when tested on the same machine?

  • Like
Reactions: GreenBar0n

JDW

Administrator
Staff member
Founder
Sep 2, 2021
2,566
2,003
113
54
Japan
youtube.com
You are asking about the 74LS38 VCC Pin 14 voltage, but I don't have the EU edition Analog Board currently installed right now to test. Even so, before I do any board swap to perform such a test, note that the voltage levels at the Analog Board are higher than what my Mac-O-Meter shows at the external floppy drive connector. The reason is because there is resistance in the analog board traces, more resistance in my upgraded 16AWG main wiring harness cable, and more resistance in the motherboard traces. So if I remove the current A.B. and swap in the EU edition A.B. and then measure at 74LS38 VCC Pin 14, it very well could be 5.26V or slightly higher.

For everyone else reading this thread, you may be wondering...

Why does this even matter?​

ANWSER: Because, especially on the SE/30, "low voltage on the 5v rail" is a real world issue for many, especially if you have upgrades, and absolutely if you have the untouched stock main wiring harness.

In the past I was getting on order of 4.65V at times on my tricked-out SE/30 machines. Maxing out the voltage POT inside the SONY PSU and beefing up the main wiring harness wires to 16AWG largely eliminated that.

But now that I have discovered a key difference between the EU Analog Board and my 3 US Analog Boards, it would be good to nail down the cause. Why? Because some of you out there use the Baby Face or similar modern PSU which uses Meanwell MODULES that have fixed voltages that cannot be cranked up like you can on the stock SONY PSUs. No need to do that for anything but the 5V rail, but still. It is what it is. And so, if you use a MEANWELL MODULE type modern PSU replacement, you'll get a rock solid 5.0V when measuring at the Analog board, but when you measure at the motherboard like I am in this thread (using a Mac-O-Meter for convenience), you will get lower than 5V, and it could be quite a bit lower if you have a lot of upgrades, and shockingly lower if you've not upgraded your main wiring harness.

So if we can determine what on the US boards are drawing more power than the EU board (which would explain the voltage difference of 5.16V versus 5.04V), maybe something on the Analog Board could be changed to eliminate that voltage drop, thereby giving the user a higher voltage level on the 5V rail, which again is what you want if you have a lot of power hungry upgrades.

  • Like
Reactions: GreenBar0n

GreenBar0n

Tinkerer
Dec 22, 2025
64
28
18
East Bay Area, CA
Yes, was curious as to where the voltage increase or lack of resistance is coming from on the EU AB. Without knowing the voltage of the Sony PSU at connector P3 Pin 4/9, being able to follow the +5V rail to the floppy port was of interest. Understood about the add-on cards current requirements and why this is important.


JDW

Administrator
Staff member
Founder
Sep 2, 2021
2,566
2,003
113
54
Japan
youtube.com

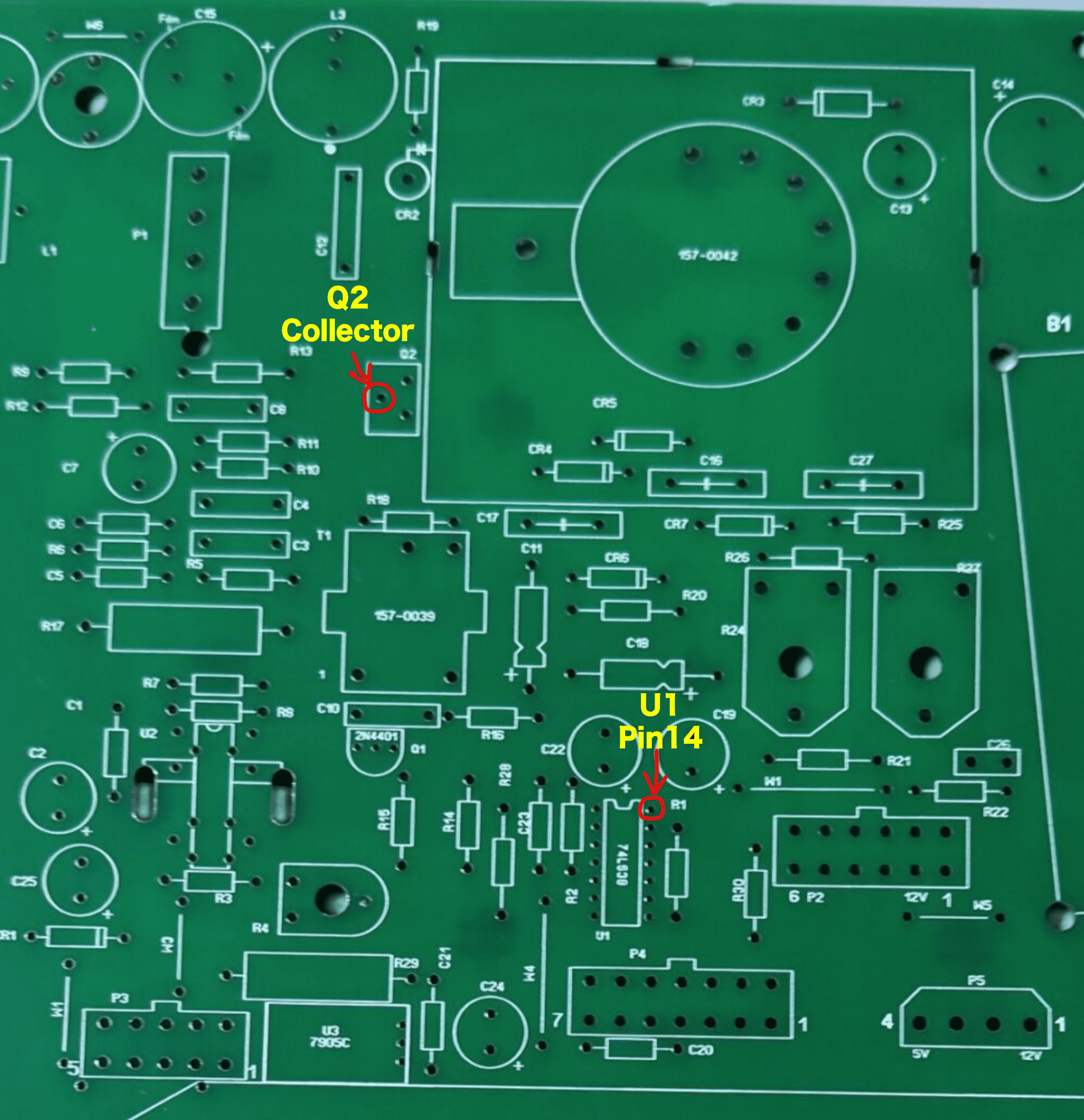

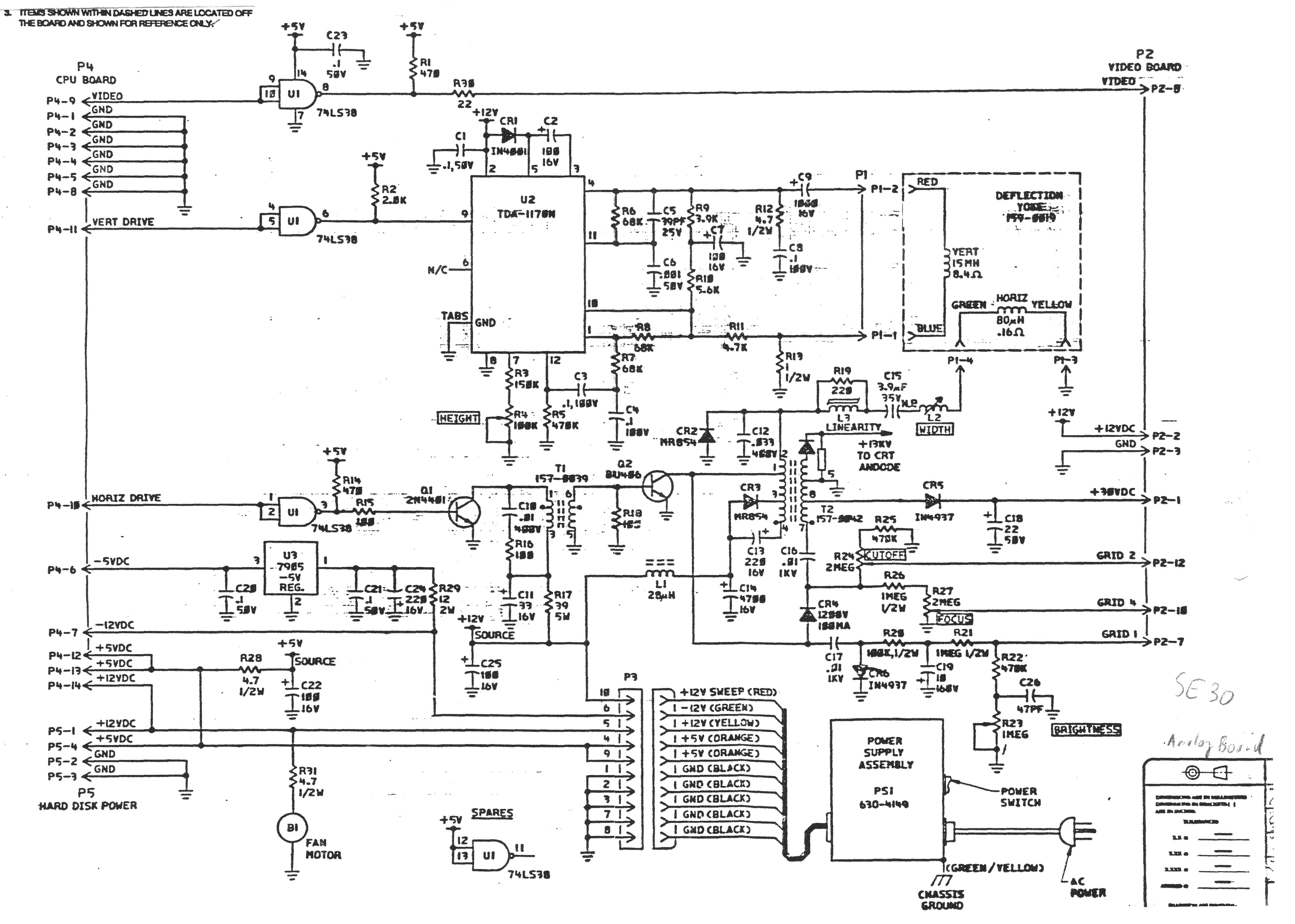

Curious what the 74LS38 VCC Pin 14 voltage is of the EU board, is it 5.16V there and also the collector of Q2?
Sorry for my delayed response.

On one of my SE/30 Analog Boards (all 3 of which report 5.04V at the FDD connector via Mac-O-Meter), I measured the following tonight:
  • Collector of Q2 is 19.68V.
  • Pin 14 of U1 (74LS38) is 4.878V
Sorry, but I didn't have time to do a board swap to test the SE/30 A.B. (which shows 5.16V on Mac-O-Meter).
