luRaichu said:
Your cable kludge worked without these? Are they present on other 2 slot risers?
Click to expand...

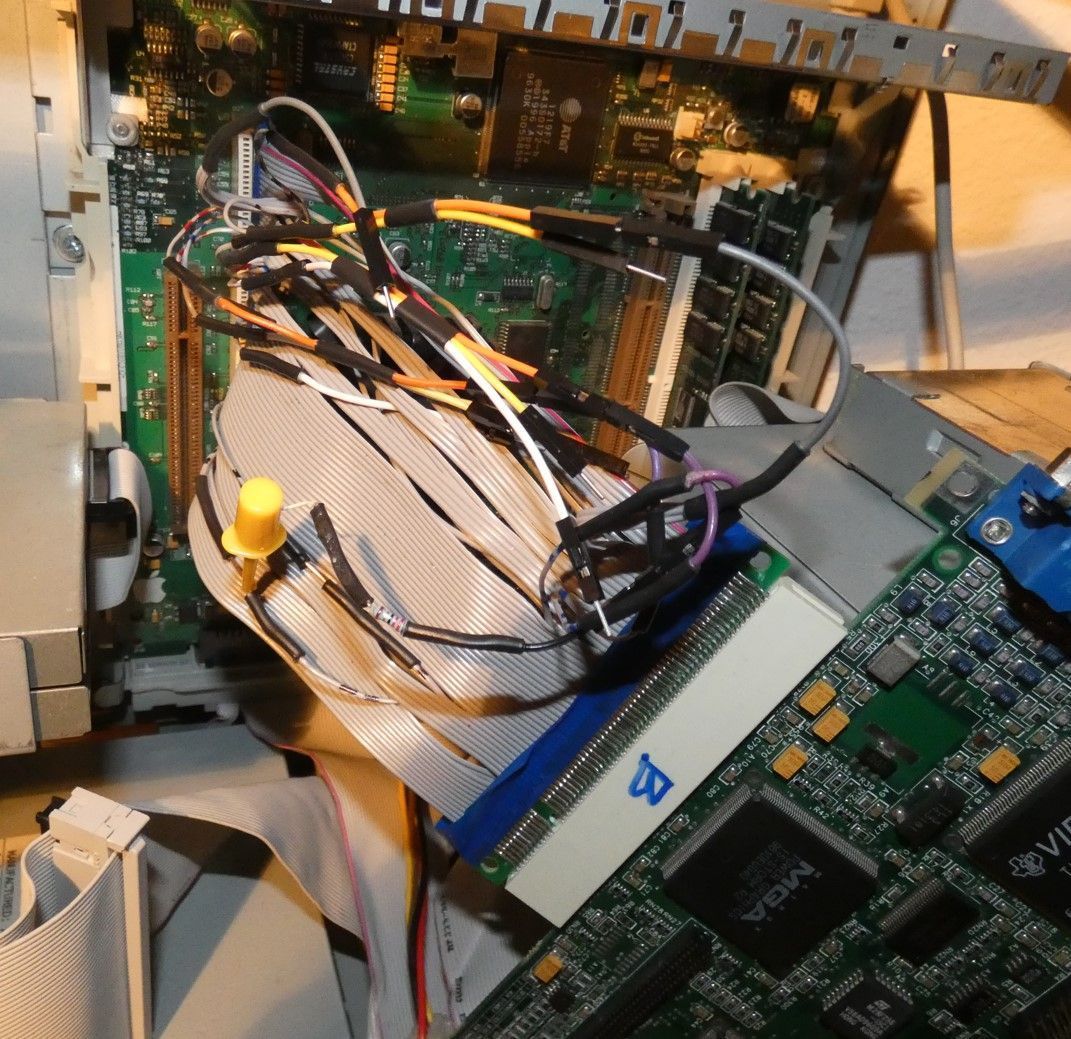

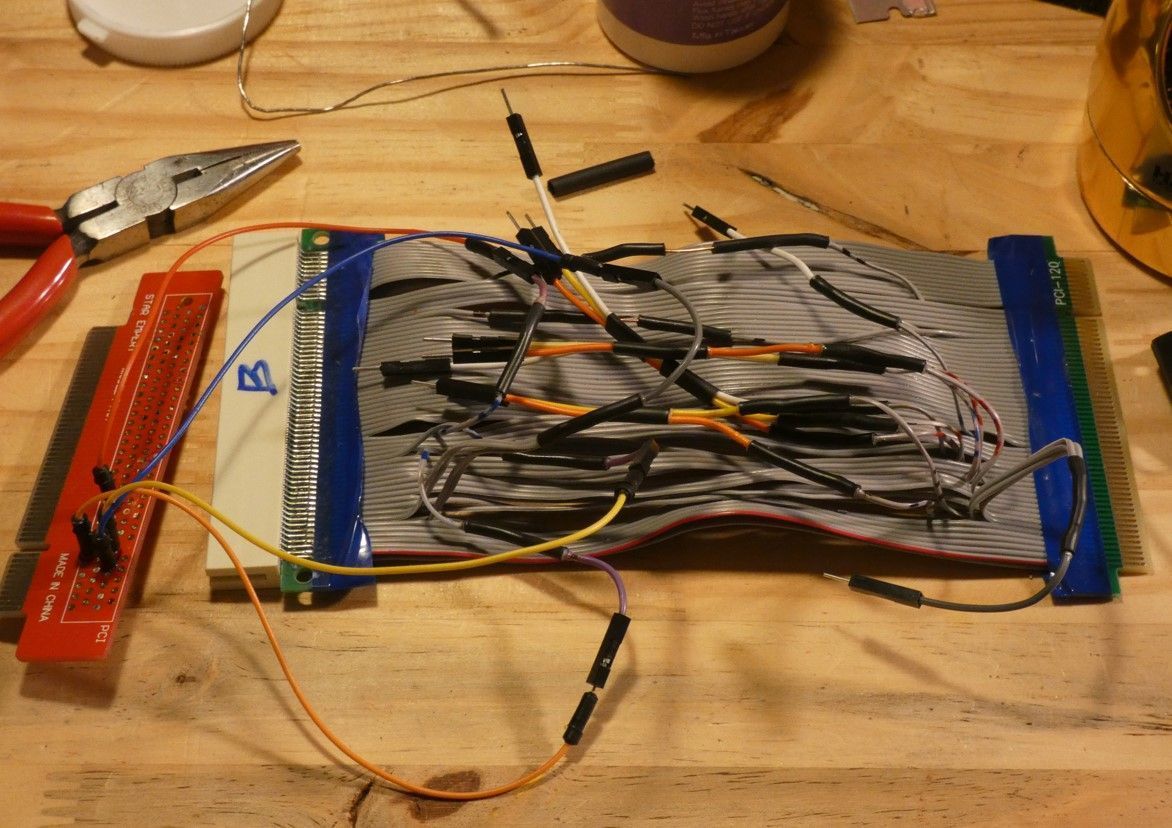

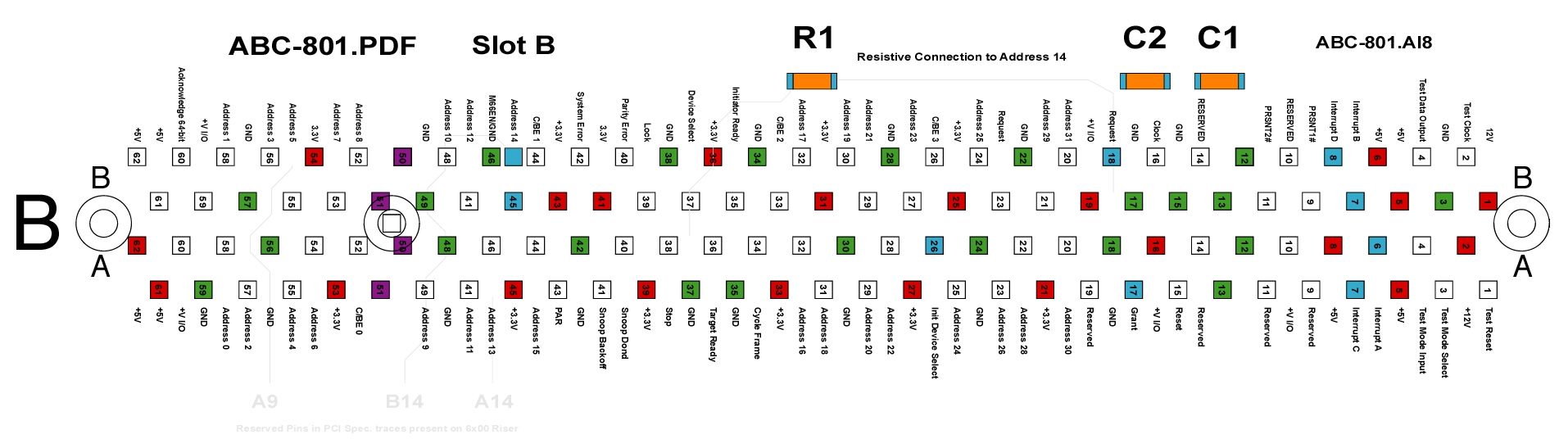

Yep, no capicitors involved, just the resistor. Using jumper wires attached to all the requisite points I got:

Slot A = A1
Slot B = B1
Slot C = D1

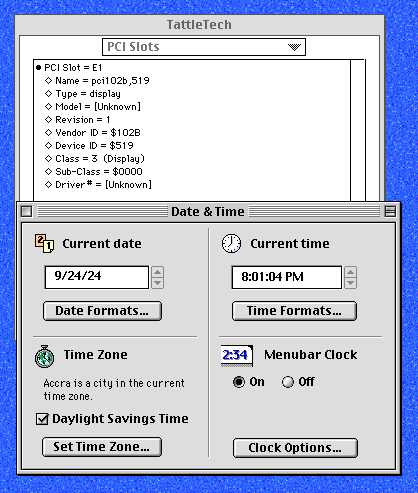

Slot E = E1 - with signals jumpered from CSII Slot. This one's tangential, but I'll do a dedicated post here with the info/pic.

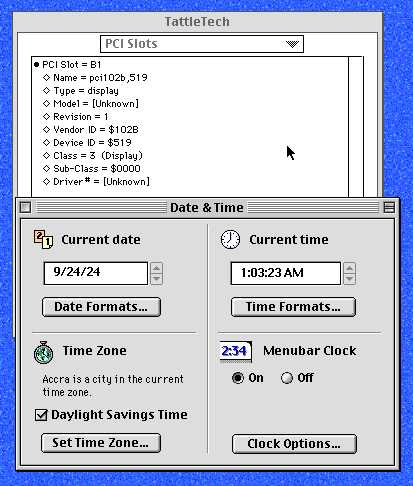

TattleTech PCI Slot report screenshots in link:
